  6. Surge Protection Device, 1500V DC, 3 Poles

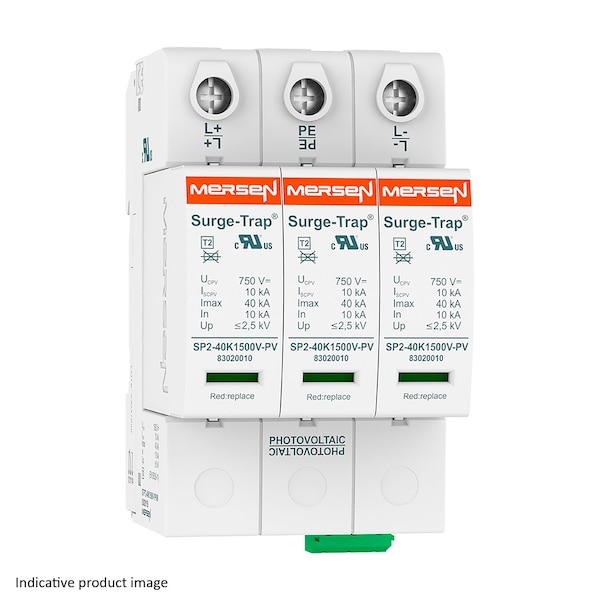

Mersen Surge Protection Device, 1500V DC, 3 Poles 83020158 - main

Surge Protection Device, 1500V DC, 3 Poles

  • Mfr # 83020158

  • Zoro # G9037003

product price:  $347.73
/ea
Free Shipping & Returns

Key Features

Voltage
1500V DC
Number of Poles
3
Voltage Protection Rating
4000 V
Modes of Protection
PV
Max. Surge Current per Mode
40kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
83020158
Zoro #
G9037003
UPC #
8435297855026
Country of Origin
Spain

Dimensions

Length
2.76 in
Width
2.13 in

Details

Item
Surge Protection Device
Voltage
1500V DC
Number of Poles
3
Voltage Protection Rating
4000 V
Modes of Protection
PV
Max. Surge Current per Mode
40kA
Max. Surge Current per Phase
40 kA
Nominal Discharge Current
10 kA
Short Circuit Current Rating
50kA, 65kA, 100kA
Enclosure Material
Polyamide
Torque Rating
35.4 lb-in
Iec Spd Type
Type 2 IEC 61643-31; Type 2 EN 50539-11; Type 2 UL 1449
Wire Type
Rigid: 6€¦35mm²
Ac Or Dc
DC
Response Time
25 ns
Vpr Dc- G
4000 V
System Configuration
PV
Max Operating Temp
85 °C
Vpr Dc G
4000 V
Replacement Plug L-N
SP2-40K1500V-PV
Ul Spd Type
Type 2
Up At In L-L
‰¤5.0 kV
Nominal discharge current (8/20μs)
10 kA, 20 kA
SCCR
50 kA, 65 kA, 100 kA (UL 1449 4th Ed.)
Vpr Dc Dc-
4000 V
Min Operating Temp
-40 °C
Up At In L-Pe
‰¤5.0 kV
Max Discharge Current Imax 8 20
40kA

Description

Surge-Trap SPD T2,40kA,Ucpv 1500V YPV
