Shop MERSEN

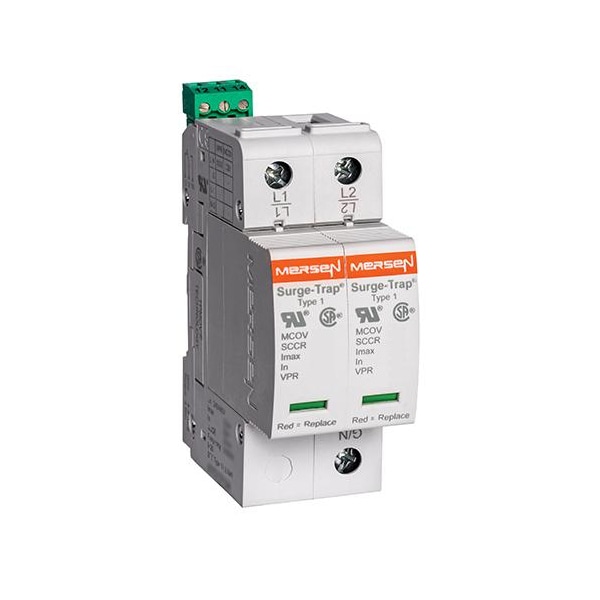

Surge Protection Device, 240/480V AC, 2 Poles, 2 Wires, 75 kA

  • Mfr # STP480S07M

  • Zoro # G9036988

product price:
$
228.59
/ea
Free Shipping & Returns

Key Features

Mounting Style
DIN Rail
Voltage
240/480V AC
Number of Poles
2
Voltage Protection Rating
1800V (L-L), 900V (L-N)
Number of Wires
2 Wires
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
STP480S07M
Zoro #
G9036988
UPC #
-
Country of Origin
Mexico

Dimensions

Length
4.19 in
Depth
2.81 in
Width
1.38 in

Details

Item
Surge Protection Device
Mounting Style
DIN Rail
Voltage
240/480V AC
Number of Poles
2
Voltage Protection Rating
1800V (L-L), 900V (L-N)
Number of Wires
2 Wires
Modes of Protection
L-L
Max. Surge Current per Mode
75 kA
Max. Surge Current per Phase
75 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Modular
Yes
Filtering
No
Max. Continuing Operating Voltage
275/550V AC
Enclosure NEMA Rating
NEMA 1
IP Rating
IP20
Enclosure Material
Thermoplastic
Wire Gauge
14 to 4 AWG
Includes
Microswitch
Standards
RoHS Compliant
Max Discharge Current Imax 8 20
75kA
Torque Rating
35.4 lb-in
Mcov L-N
275 V
Min Operating Temp
-40 °C
Replacement Plug L1
SP275U
Wire Connections
Box
Wiring Range
#4 to #14 AWG
System Configuration
Split Phase
Response Time
<25 ns
Flammability Rating
UL94 V0
Connection Terminal Type
Box
Wire Type
Solid / Stranded CU
Min Storage Temp
-40 °C
Max Storage Temp
85 °C
Installation Mounting
DIN Rail
Max Operating Temp
85 °C
Mcov L-L
550 V
Replacement Plug L2
SP275U
Ac Or Dc
AC
Ul Spd Type
Type 1 Component Assembly
Indication System Type
Microswitch
Short Description
SPD - Plugable STP 75 Series 240/480V L-N VPR 600V L-N MCOV 275V 75 kA 2-pole MI
APPROVALS & STANDARDS
ANSI/UL 1449 4th Edition,; ANSI/IEEE C62.41.1, C62.41.2,
Item Description (ERP)
STP T1 75kA 480/240V SP ALM
Max Discharge Current : Imax (8/20)
75kA
Connection/Terminal Type
Box
Frequency
50/60 Hz
Indication System
Yes
MOV Response Time
<25 ns
Max. Operating Temp.
185 Degrees F
UL SPD Type
Type 1
Amps
75 kA
Min. Operating Temp.
-40 Degrees F
Phase
single

Description

Surge Protection Device, Amps 75 kA, Depth 71.4 mm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
