  11. Surge Protection Device, Single Phase, 120/240V AC, 50 kA

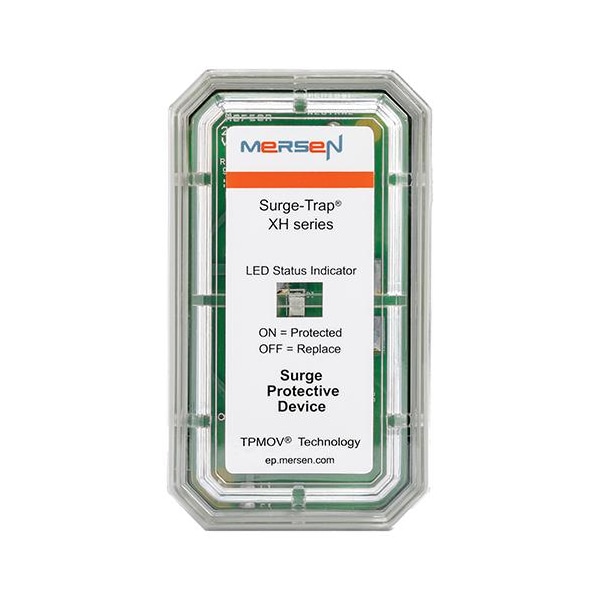

Mersen Surge Protection Device, Single Phase, 120/240V AC, 50 kA STXH240S05 - main

Surge Protection Device, Single Phase, 120/240V AC, 50 kA

  • Mfr # STXH240S05

  • Zoro # G9036647

product price: $180.78
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel
Phase
Single
Voltage
120/240V AC
Modes of Protection
L-N, L-G
Max. Surge Current per Mode
50 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXH240S05
Zoro #
G9036647
UPC #
00782001472504
Country of Origin
Mexico

Dimensions

Length
3.2 in
Depth
3.22 in
Width
1.85 in

Details

Item
Surge Protection Device
Mounting Style
Panel
Phase
Single
Voltage
120/240V AC
Voltage Protection Rating
1000V (L-G), 600V (L-N)
Modes of Protection
L-N, L-G
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
150/300V
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Gauge
10 AWG
Includes
LED Status Indicator
Standards
RoHS Compliant, UL 1449 Listed
Mcov L-G
300 V
Ac Or Dc
AC
Mcov L-N
150 V
Min Operating Temp
-40 °C
Max Storage Temp
85 °C
Max Operating Temp
85 °C
Installation Mounting
Panel Mount
Ul Spd Type
Type 1
Max Discharge Current Imax 8 20
50 kA per phase
Flammability Rating
UL94-5VA
Min Storage Temp
-40 °C
Wire Connections
Pre-wired
System Configuration
Split Phase
Indication System
Yes
Indication System Type
LED
Max Discharge Current : Imax (8/20)
50 kA per phase
Frequency
50/60 Hz
APPROVALS & STANDARDS
ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793; CSA C22.2, Type 1 SPD; ANSI/IEEE C62.41.1, C62.41.2, C62.45; UL96A Lightning Protection
Short Description
SPD - Type 1 ST-XH Series 240/120V L-L VPR 600V L-L MCOV 150V 50 kA LED Ind
APPLICATIONS
Any 120/240VAC split phase application; HVAC applications; Direct mounting to air condition disconnect switches
Item Description (ERP)
XH T1 50kA 240/120V SP
Max. Operating Temp.
185 Degrees F
Min. Operating Temp.
-40 Degrees F
Amps
50 kA
Status Indicator
LED Light
UL SPD Type
Type 1

Description

Surge Protection Device, Amps 50 kA, Depth 81.8 mm, Enclosure Material Non-Metallic, Enclosure NEMA Rating 4X

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
