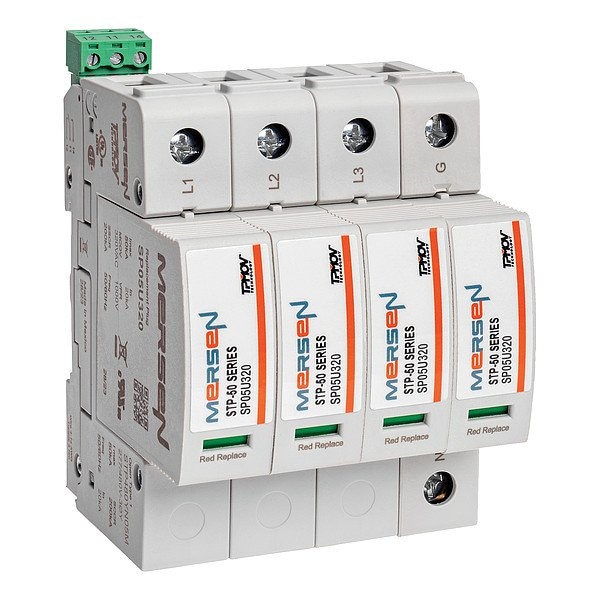

Surge Protection Devices
Mfr # STP480YN05M
Zoro # G421723363
original price:Â $384.99 , new price: $346.99 , 9 percent off
new price:Â
$
346.99
/ea
Free Shipping & Returns
Key Features
Mounting Style
DIN Rail
Phase
Three
Voltage
277/480VAC Wye
Number of Poles
4
Voltage Protection Rating
1000V (L-N), 1000V (N-G), 1500V (L-G), 2000V (L-L)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- STP480YN05M
- Zoro #
- G421723363
- UPC #
- 0782001510367
- Country of Origin
- Mexico
Dimensions
- Length
- 106.4 mm
- Depth
- 71.4 mm
- Width
- 70.1 mm
Details
- Mounting Style
- DIN Rail
- Phase
- Three
- Voltage
- 277/480VAC Wye
- Number of Poles
- 4
- Voltage Protection Rating
- 1000V (L-N), 1000V (N-G), 1500V (L-G), 2000V (L-L)
- Number of Wires
- 5 Wires
- Modes of Protection
- L-G, L-L, L-N, N-G
- Max. Surge Current per Phase
- 75 kA
- Nominal Discharge Current
- 20 kA
- Modular
- Yes
- Max. Continuing Operating Voltage
- 480 V
- Item
- SPD
- UL SPD Type
- Type 1
- Max. Operating Temp.
- 185 Degrees F
- Min. Operating Temp.
- -40 Degrees F
- Standards
- RoHS Compliant
- Amps
- 50 kA
- Includes
- Microswitch
- Short Circuit Current Rating
- 200 kA
- Wire Gauge
- 14 to 4 AWG
- Max. Surge Current per Mode
- 75 kA
Description
SPD, Amps 50 kA, Depth 71.4 mm
