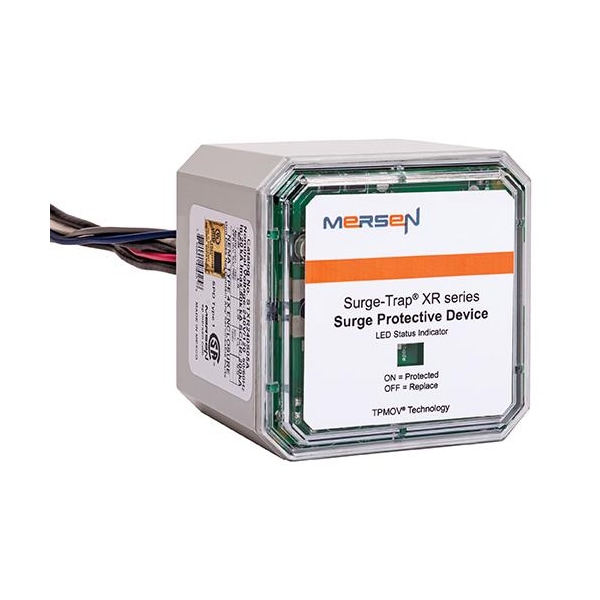

Mersen Surge-Trap, xR, T1, 50kA, 240/120V, SP ALM STXR240S05A - main

Surge-Trap, xR, T1, 50kA, 240/120V, SP ALM

  • Mfr # STXR240S05A

  • Zoro # G9036577

product price: $417.36
/ea
Free Shipping & Returns

Key Features

Mounting Style
Panel
Voltage
120/240V AC
Voltage Protection Rating
1000V (L-G, L-L), 600V (L-N)
Modes of Protection
L-G, L-N, L-L
Max. Surge Current per Mode
50 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
STXR240S05A
Zoro #
G9036577
UPC #
782001470258
Country of Origin
Mexico

Dimensions

Length
3 1/4 in
Depth
3.35 in
Width
3.35 in

Details

Item
Surge Protection Device
Mounting Style
Panel
Voltage
120/240V AC
Voltage Protection Rating
1000V (L-G, L-L), 600V (L-N)
Modes of Protection
L-G, L-N, L-L
Max. Surge Current per Mode
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
150/300V
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Polycarbonate
Wire Connections
Pre-wired
Mcov L-G
300 V
Max Storage Temp
85 °C
System Configuration
Split Phase
Mcov L-N
150 V
Ul Spd Type
Type 1
Min Storage Temp
-40 °C
Max Discharge Current Imax 8 20
50 kA per phase
Min Operating Temp
-40 °C
Ac Or Dc
AC
Installation Mounting
Panel Mount
Mcov L-L
300 V
Max Operating Temp
85 °C
Flammability Rating
UL94-5VA
Indication System Type
LED and Remote Audible Alarm
Item Description (ERP)
XR T1 50kA 240/120V SP ALM
APPLICATIONS
Suitable for any Type 1 or 2 SPD application; branch panel; individual equipment protection
Max Discharge Current : Imax (8/20)
50 kA per phase
APPROVALS & STANDARDS
ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793; CSA C22.2, Type 1 SPD; ANSI/IEEE C62.41.1, C62.41.2, C62.45; UL96A Lightning Protection
Short Description
SPD-Type 1 ST-XR Series 240/120V L-L VPR 1000V L-L MCOV 300V 50 kA LED + Remote
Frequency
50/60 Hz
Indication System
Yes
Includes
LED + Remote
Max. Surge Current per Phase
50 kA

Description

Surge -Trap XR T1 50kA 240/120V SP ALM
