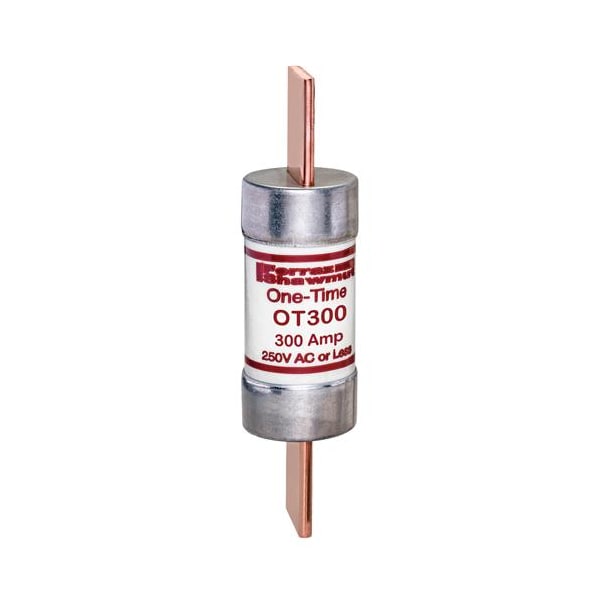

UL Class Fuse, K5 Class, OT Series, Fast-Acting, 300A, 250V AC

Mfr # OT300
Zoro # G9040993

74.59

Key Features

Class

Speed

Fast-Acting

AC Voltage Rating

250V AC

DC Voltage Rating

250V DC

Interrupt Rating

50kA at 250V AC, 20kA at 250V DC

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: OT300
Zoro #: G9040993
UPC #: -
Country of Origin: Mexico

Dimensions

Length: 8.63 in
Diameter: 2.06 in

Details

Class: K5
Series: OT
Speed: Fast-Acting
Amps: 300A
AC Voltage Rating: 250V AC
DC Voltage Rating: 250V DC
Interrupt Rating: 50kA at 250V AC, 20kA at 250V DC
Body Style: Blade
Body Material: Polytube
Fits Fuse Block Style: Non-Rejection
Item: UL Class Fuse
Fuse Speed: Fast Acting
Weight: 1.45 lb
Connection Material: Tin-Plated Copper
Mounting: Clip
AC Max I.R./Breaking Capacity: I1: 50 kA
Short Description: Fuse Amp-Trap® 250V 300A Fast-Acting Class K5 OT Series
Connection/Terminal Material: Tin-Plated Copper
APPROVALS & STANDARDS: UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248; UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248

Description

K5FUSE 43116 8 5/8x2 300A 250V
