Mersen

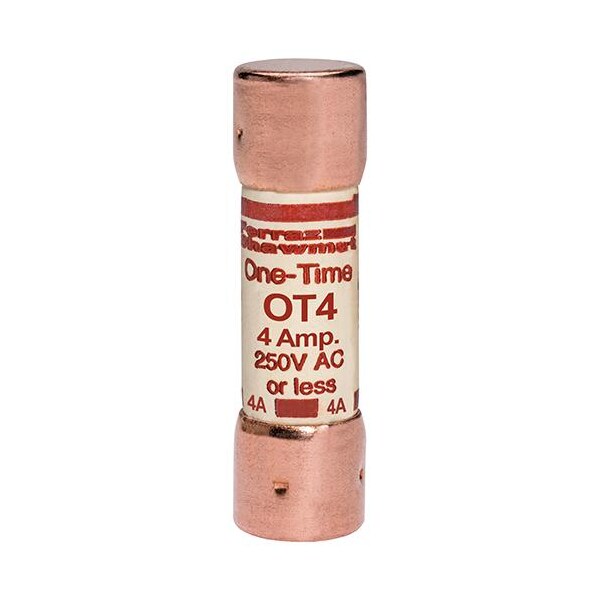

UL Class Fuse, K5 Class, OT Series, Fast-Acting, 4A, 250V AC


product price: $5.39
/ea
Sold in multiples of 4 for $21.56

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Class K5
  • Series OT
  • Speed Fast-Acting
  • Amps 4A
  • AC Voltage Rating 250V AC
See all product information

Product Information

Dimensions

Length 2 in
Diameter 0.56 in

Details

Class K5
Series OT
Speed Fast-Acting
Amps 4A
AC Voltage Rating 250V AC
DC Voltage Rating 250V DC
Interrupt Rating 50kA at 250V AC, 20kA at 250V DC
Body Style Ferrule
Body Material Melamine
Fits Fuse Block Style Nonrejection
Item UL Class Fuse
Weight 0.04 lb
Mounting Clip
Connection Material Copper
Speed/Characteristic Fast-Acting
Ampere Rating 4A
Short Description Fuse Amp-Trap® 250V 4A Fast-Acting Class K5 OT Series
APPLICATIONS Feeders; Branch circuits; Resistive heating; Residential and small commercial installations
Connection/Terminal Material Copper
APPROVALS & STANDARDS UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248; UL Listed to Standard 248-9 File E2137; CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.); Self-certified for DC per UL248
AC Max I.R./Breaking Capacity: I1 50 kA
Brand MERSEN

Description

FUSE K5 2x9/16 4A 250V

Restrictions
