  11. Modbus Module, 6 Inputs, 2 Outputs
No Product Image Available

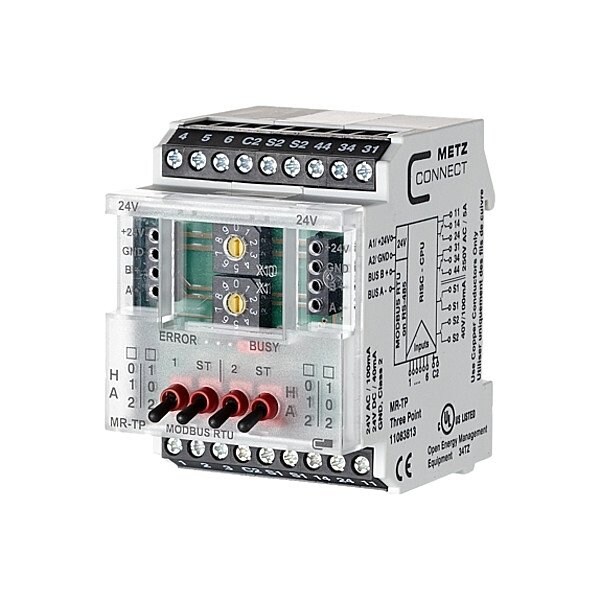

Modbus Module, 6 Inputs, 2 Outputs

  • Mfr # 11083813

  • Zoro # G112007383

product price: $413.99
/ea
Free Shipping & Returns

Key Features

Output Type
(2) Digital
Number of Outputs
2
Number of Inputs
6
Features
Suitable for Switching, Module is Address with Adjustable Bit Rate, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Manual Control
Power Required
24V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11083813
Zoro #
G112007383
UPC #
4250184161004
Country of Origin
Germany

Dimensions

Overall Depth
60 mm
Overall Height
69.3 mm
Overall Width
50 mm

Details

Item
Modbus Module
Output Type
(2) Digital
Number of Outputs
2
Number of Inputs
6
Features
Suitable for Switching, Module is Address with Adjustable Bit Rate, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Manual Control
Power Required
24V AC/DC
Output Circuit Current - Maximum
6 A
Compatible with Brand
METZ Connect
Compatible with Manufacturer Model Number
MR-F-GW, MR-GW
Wire Connection Type
Screw Clamp
Compatible Product Type
BAS Controller, Programmable Logic Controllers, TCP Gateways
Communication Protocol
Modbus RTU
Product Type
Modbus Module
Mounting Style
DIN Rail
Connector Type
Terminal Block
Input Circuit Voltage - Maximum
4.5 V DC
Input Type
(6) Digital
Connector Gender
Female
Current Rating
6 A
Output Circuit Voltage - Maximum
250 V AC
Compatible with Series
C-Logline
Compatible with Mfr. Model No.
MR-F-GW, MR-GW
For Use with Mfr Model Number
MR-F-GW, MR-GW
Compatible Manufacturer Part Number
MR-F-GW, MR-GW
Compatible Manufacturer Model Number
MR-F-GW, MR-GW
For Use With Mfr. Model Number
MR-F-GW, MR-GW
Compatible with Manufacturer Model No.
MR-F-GW, MR-GW
Compatible Pump Manufacturer Part Number
MR-F-GW, MR-GW
Compatible Mfr. Model Number
MR-F-GW, MR-GW

Description

Modbus Module, Number of Inputs 6, Number of Outputs 2, Power Required 24V AC/DC, Features Suitable for Switching, Module is Address with Adjustable Bit Rate, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Manual Control, Connector Gender Female, Current Rating 6 A, Mounting Style DIN Rail, Connector Type Terminal Block, Wire Connection Type Screw Clamp
