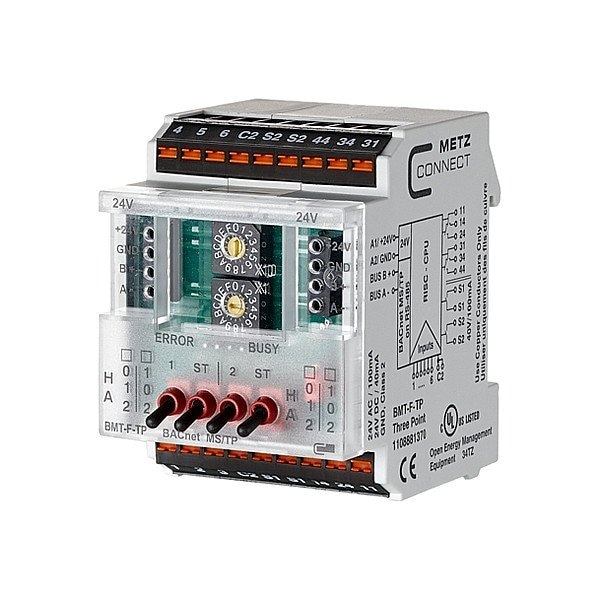

MS/TP Module, 6 Inputs, 2 Outputs

  • Mfr # 1108881370
  • Zoro # G512007303
product price:
$
446.99
/ea
Free Shipping & Returns

Key Features

Output Type
(2) Relay
Number of Outputs
2
Number of Inputs
6
Features
Suitable for Switching, Suitable for Decentralized Mounting, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Module is Address with Adjustable Bit Rate, Manual Control
Mounting Style
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1108881370
Zoro #
G512007303
UPC #
4251394620817
Country of Origin
Germany

Dimensions

Overall Height
69.3 mm
Overall Depth
60 mm
Overall Width
50 mm
Fits Chest Size
Suitable for Switching, Suitable for Decentralized Mounting, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Module is Address with Adjustable Bit Rate, Manual Control

Details

Item
MS/TP Module
Output Type
(2) Relay
Number of Outputs
2
Number of Inputs
6
Features
Suitable for Switching, Suitable for Decentralized Mounting, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Module is Address with Adjustable Bit Rate, Manual Control
Mounting Style
DIN Rail
Input Type
(6) Digital
Communication Protocol
BACnet MS/TP
Output Circuit Current - Maximum
6 A
Connector Gender
Female
Power Required
24V AC/DC
Compatible with Series
C-Logline
Output Circuit Voltage - Maximum
250 V AC
Compatible Product Type
BACnet-Router, Controller, Programmable Logic Controllers
Compatible with Manufacturer Model Number
BMT-F-RTR, BMT-RTR
Wire Connection Type
Spring Clamp Terminal
Compatible with Brand
METZ Connect
Connector Type
Terminal Block
Product Type
MS/TP Module
Current Rating
6 A
Compatible with Mfr. Model No.
BMT-F-RTR, BMT-RTR
For Use with Mfr Model Number
BMT-F-RTR, BMT-RTR
Compatible Manufacturer Part Number
BMT-F-RTR, BMT-RTR
Compatible Manufacturer Model Number
BMT-F-RTR, BMT-RTR
For Use With Mfr. Model Number
BMT-F-RTR, BMT-RTR
Compatible with Manufacturer Model No.
BMT-F-RTR, BMT-RTR
Compatible Pump Manufacturer Part Number
BMT-F-RTR, BMT-RTR
Compatible Mfr. Model Number
BMT-F-RTR, BMT-RTR
For Manufacturer Part Number
BMT-F-RTR, BMT-RTR
Compatible with Mfr. Model Number
BMT-F-RTR, BMT-RTR
Compatible Series
C-Logline

Description

MS/TP Module, Number of Inputs 6, Number of Outputs 2, Power Required 24V AC/DC, Features Suitable for Switching, Suitable for Decentralized Mounting, Input Terminals 1 to 6 are Wired with The C2 Terminals, Inputs and Outputs can be Switched and Scanned, Module is Address with Adjustable Bit Rate, Manual Control, Connector Gender Female, Current Rating 6 A, Mounting Style DIN Rail, Connector Type Terminal Block, Wire Connection Type Spring Clamp Terminal
