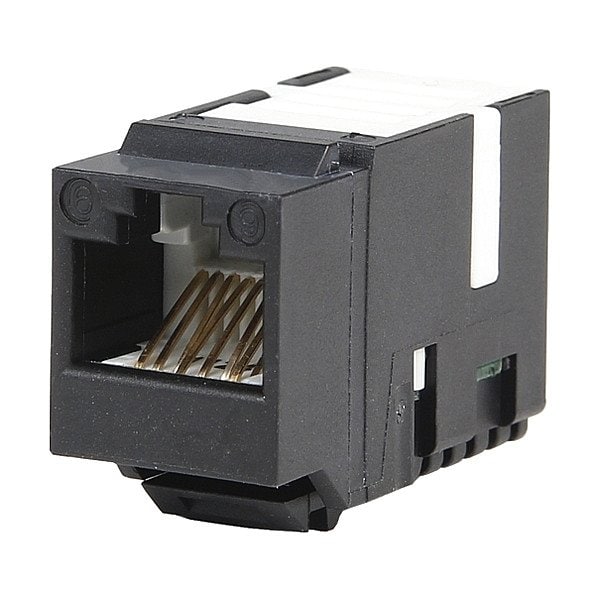

Module, Black, Poles 8
Mfr # 130A10-29-I-B1
Zoro # G108655819
product price:Â $6.19
/ea
Sold in multiples of 2 for $12.38
Key Features
Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Standards
DIN EN 50173-1, ISO/IEC 11801
Data Rate
1 Gbits
Performance Category
Cat6
Housing Material
Polyamide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 130A10-29-I-B1
- Zoro #
- G108655819
- UPC #
- 4250184118381
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Details
- Item
- Module
- Standards
- DIN EN 50173-1, ISO/IEC 11801
- Data Rate
- 1 Gbits
- Performance Category
- Cat6
- Housing Material
- Polyamide
- Minimum Operating Temperature
- -40 Degrees F
- Minimum Mating Cycles
- 750
- Connector Orientation
- Straight
- Connection Type
- Insulation Displacement
- Maximum Operating Temperature
- 158 Degrees F
- Application
- Data, HDBaseT, Power
- Connector Gender
- Female
- Shielded
- No
- Number of Poles
- 8
- Connector Color
- Black
- Current Rating
- 1 A
- Voltage Rating
- 50V
Description
Module, Application Data, HDBaseT, Power, Connection Type Insulation Displacement, Connector Color Black, Connector Gender Female, Connector Orientation Straight, Current Rating 1 A, Data Rate 1 Gbits, Housing Material Polyamide, Maximum Operating Temperature 158 Degrees F, Minimum Mating Cycles 750, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded No, Standards DIN EN 50173-1, ISO/IEC 11801, Voltage Rating 50V
