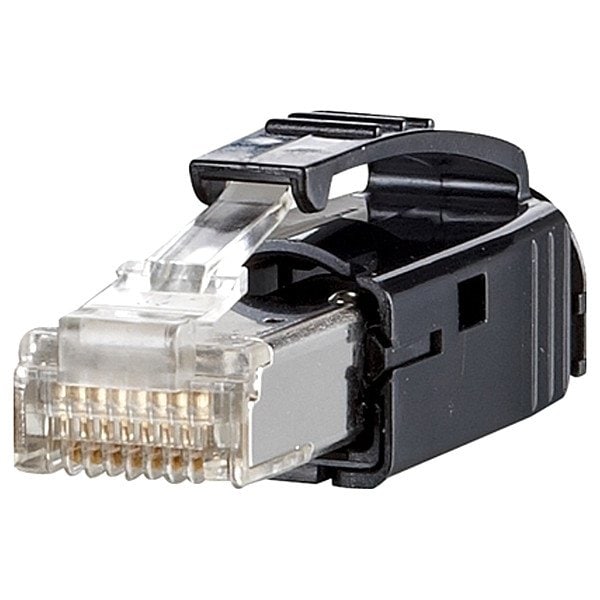

Plug, Black, Poles 8
Mfr # 1401505012-E
Zoro # G608655821
product price:Â $8.45
/eaKey Features
Standards
DIN EN 50173-1, ISO/IEC 11801
Wire Size
26/1 to 24/1 AWG, 27/7 to 24/7 AWG
Performance Category
Cat6
Shielded
Yes
Current Rating
1 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1401505012-E
- Zoro #
- G608655821
- UPC #
- 4250184113799
- Country of Origin
- Germany
Dimensions
- Wire Size
- 26/1 to 24/1 AWG, 27/7 to 24/7 AWG
- Cable Diameter
- 7.3 mm
Details
- Item
- Plug
- Standards
- DIN EN 50173-1, ISO/IEC 11801
- Performance Category
- Cat6
- Shielded
- Yes
- Current Rating
- 1 A
- IP Rating
- IP67
- Connector Orientation
- Straight
- Connector Color
- Black
- Application
- Data, HDBaseT, Power
- Housing Material
- Polycarbonate
- Connector Gender
- Male
- Minimum Mating Cycles
- 750
- Number of Poles
- 8
- Minimum Operating Temperature
- -40 Degrees F
- Data Rate
- 10 Gbits
- Maximum Operating Temperature
- 158 Degrees F
- Connection Type
- Crimp
Description
Plug, Application Data, HDBaseT, Power, Cable Diameter 7.3 mm, Connection Type Crimp, Connector Color Black, Connector Gender Male, Connector Orientation Straight, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Polycarbonate, IP Rating IP67, Maximum Operating Temperature 158 Degrees F, Minimum Mating Cycles 750, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded Yes, Standards DIN EN 50173-1, ISO/IEC 11801
