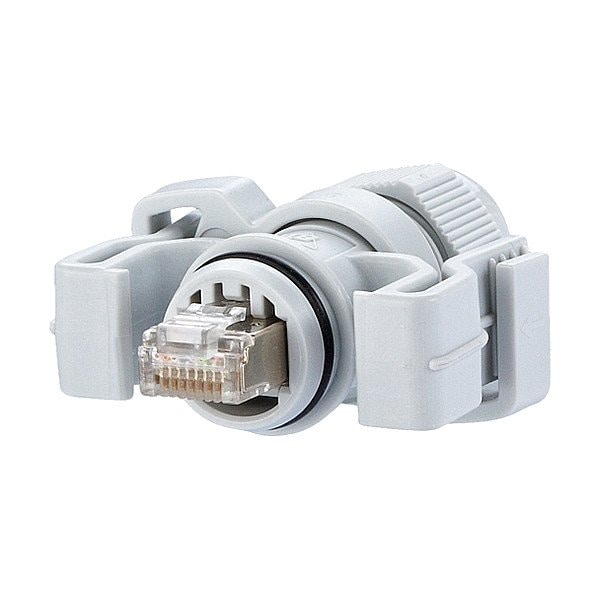

Plug, Light Gray, Poles 8
- Mfr # 130906-03-E
- Zoro # G908655828
product price:Â
$
27.49
/ea
Key Features
Wire Size
24 AWG/1 AWG, 27/7 to 24/7 AWG
Standards
DIN EN 50173-1, IEC 61076-3-106, ISO/IEC 11801
Number of Poles
8
Connector Gender
Male
Application
Data, HDBaseT, Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 130906-03-E
- Zoro #
- G908655828
- UPC #
- 4250184105381
- Country of Origin
- Germany
- Item
- Plug
- Standards
- DIN EN 50173-1, IEC 61076-3-106, ISO/IEC 11801
- Number of Poles
- 8
- Connector Gender
- Male
- Application
- Data, HDBaseT, Power
- Shielded
- Yes
- Current Rating
- 1 A
- Connector Orientation
- Straight
- Data Rate
- 10 Gbits
- IP Rating
- IP67
- Connection Type
- Crimp
- Connector Color
- Light Gray
- Performance Category
- Cat6
- Maximum Operating Temperature
- 158 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Housing Material
- Polycarbonate
Description
Plug, Application Data, HDBaseT, Power, Cable Diameter 5.5 to 6.2 mm, Connection Type Crimp, Connector Color Light Gray, Connector Gender Male, Connector Orientation Straight, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Polycarbonate, IP Rating IP67, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6, Shielded Yes, Standards DIN EN 50173-1, IEC 61076-3-106, ISO/IEC 11801
