Shop METZ CONNECT

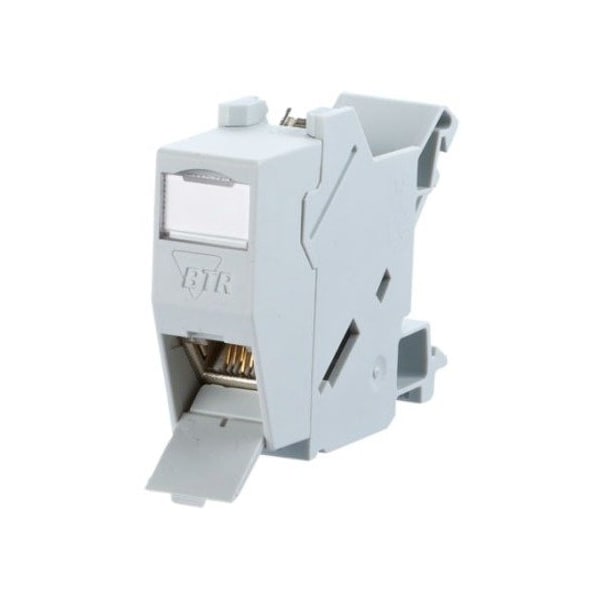

Rail-Mount Module, Light Gray, Poles 8

  • Mfr # 1309426003-E

  • Zoro # G508655853

product price:
$
35.19
/ea

Key Features

Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Standards
DIN EN 50173-1, ISO/IEC 11801
Housing Material
Zinc Die-Cast
Cable Diameter
0.197 in to 0.394 in
IP Rating
IP20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1309426003-E
Zoro #
G508655853
UPC #
4250184106586
Country of Origin
Germany

Dimensions

Wire Size
26/1 to 22/1 AWG, 26/7 to 22/7 AWG
Cable Diameter
0.197 in to 0.394 in

Details

Item
Rail-Mount Module
Standards
DIN EN 50173-1, ISO/IEC 11801
Housing Material
Zinc Die-Cast
IP Rating
IP20
Application
Data, HDBaseT, Power
Number of Poles
8
Shielded
Yes
Performance Category
Cat6A
Connector Color
Light Gray
Minimum Operating Temperature
-40 Degrees F
Connector Gender
Female
Connector Orientation
45 Degrees Angled
Data Rate
10 Gbits
Maximum Operating Temperature
158 Degrees F
Current Rating
1 A
Connection Type
Insulation Displacement

Description

Rail-Mount Module, Application Data, HDBaseT, Power, Cable Diameter 0.197 in to 0.394 in, Connection Type Insulation Displacement, Connector Color Light Gray, Connector Gender Female, Connector Orientation 45 Degrees Angled, Current Rating 1 A, Data Rate 10 Gbits, Housing Material Zinc Die-Cast, IP Rating IP20, Maximum Operating Temperature 158 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Type Cable, Number of Poles 8, Performance Category Cat6A, Shielded Yes
