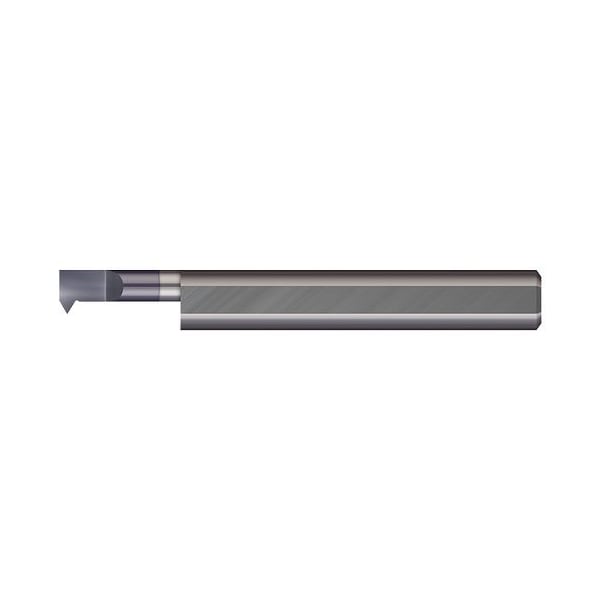

Threading Tool .490 HW X 2.50 Depth IT, AlTiN
Mfr # IT-4902500X
Zoro # G411946796
product price:Â
$
140.99
/ea
Free Shipping & Returns
Key Features
Cutting Direction
Right Hand
Size
5/1/1932
Measurement Type
SAE
Coating
AlTiN
Radius
0.0020 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- IT-4902500X
- Zoro #
- G411946796
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Size
- 5/1/1932
- Radius
- 0.0020 in
- Overall Length
- 4 in
- Shank Dia.
- 1/2 in
- Head Width
- 0.490 in
- Min. Bore Dia.
- 0.5120 in (13 mm)
- Max. Bore Depth
- 2-1/2 in
- Neck Dia.
- 0.3650 in
Details
- Cutting Direction
- Right Hand
- Measurement Type
- SAE
- Coating
- AlTiN
- Angle per Side
- 30
- Centerline Offset
- 0.2400 in
- Included Angle
- 60
- Offset
- 0.069 in
- Projection
- 0.1200 in
Description
0.5120in 13 mm Min Bore DIA x 2.500in 2-1/2 Max Bore Depth x 0.1200in Projection x 0.5000in 1/2 Shank DIA x 4.00in 4 Overall Length x 0.0020in Radius #5-32 - Carbide UN Thread Right Hand, AlTiN Coated
