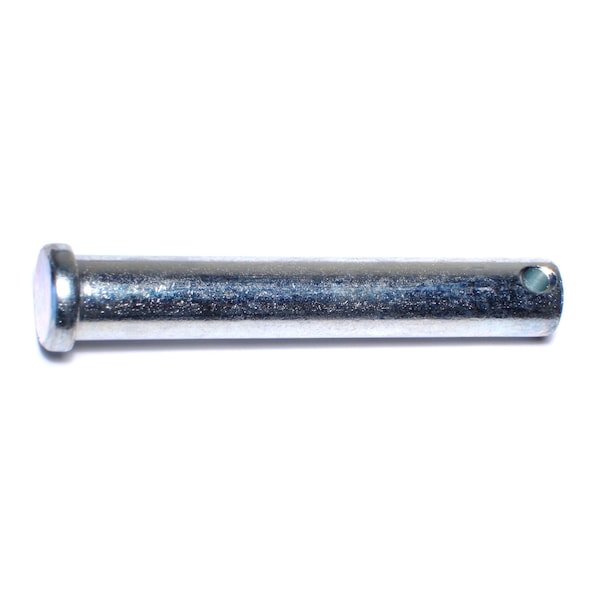

1/2" x 3" Zinc Plated, Steel, Single Hole Clevis Pins, 3PK
Mfr # 75804
Zoro # G602520170
CAD Available
product price:Â $9.99
/pk 3, $3.33/eaKey Features
CAD Drawing
System of Measurement
Inch
Pin Diameter
1/2 in
Shank Length
4 in
Material
Steel
Finish
Zinc Plated
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
75804
Zoro #
G602520170
UPC #
738287758047
Country of Origin
India
Dimensions
Pin Diameter
1/2 in
Shank Length
4 in
Length
3 in
Details
CAD Available
Yes
Item
Standard Clevis Pin
System of Measurement
Inch
Material
Steel
Finish
Zinc Plated
Style
Single Hole
Specifications
Medalist #11-239
Description
A clevis pin is a type of fastener that will allow rotation of the connected parts about the axis of the pin. A clevis pin consists of a head, shank and hole. The hole passes through the shank at the opposite end of the pin from the head. A cotter pin is inserted through the hole to keep the clevis pin in place after assembly of the parts to be fastened.
