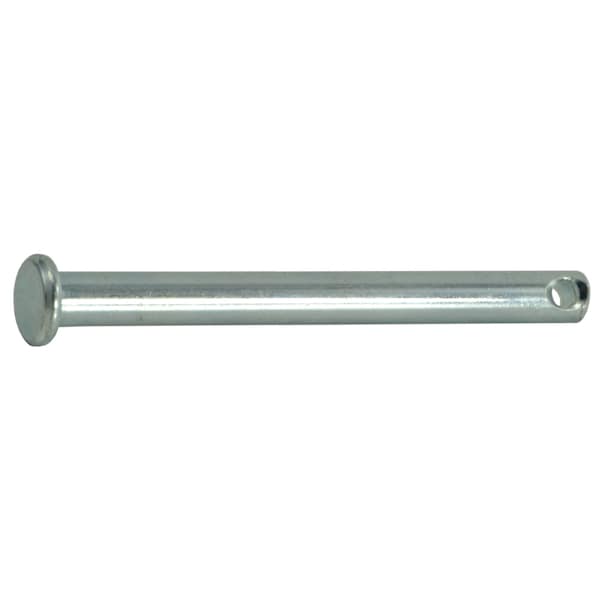

Clevis Pin, 3/16 in Dia, Steel
Mfr # 34705
Zoro # G102517946
CAD Available
product price: $14.99
/pk 15, $1.00/eaKey Features
CAD Drawing
System of Measurement
Inch
Pin Diameter
3/16 in
Material
Steel
Finish
Zinc Plated
Diameter 2
3/32"
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
34705
Zoro #
G102517946
UPC #
738287347050
Country of Origin
India
Dimensions
Pin Diameter
3/16 in
Shank Length
3 in
Diameter 2
3/32"
Diameter 1
3/16"
Length 1
2"
Details
CAD Available
Yes
Item
Standard Clevis Pin
System of Measurement
Inch
Material
Steel
Finish
Zinc Plated
Style
Single Hole
Description
A clevis pin is a type of fastener that will allow rotation of the connected parts about the axis of the pin. A clevis pin consists of a head, shank and hole. The hole passes through the shank at the opposite end of the pin from the head. A cotter pin is inserted through the hole to keep the clevis pin in place after assembly of the parts to be fastened.
