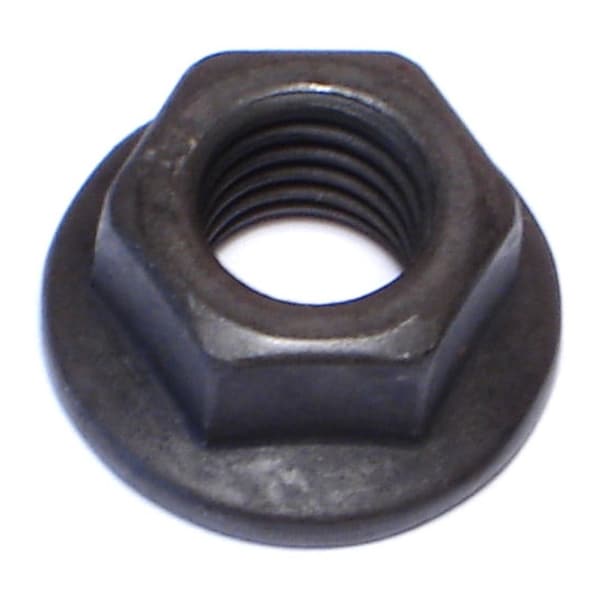

Flange Nut, M10-1.50, Steel, Class 10, Black Phosphate, 15 PK
Mfr # 77188
Zoro # G802521168
CAD Available
product price: $13.15
/pk 15, $0.88/eaKey Features
CAD Drawing
Thread Size
M10-1.50
Material
Steel
Material Grade/Class
Class 10
Finish
Black Phosphate
Flange Diameter
21.8 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
77188
Zoro #
G802521168
UPC #
738287771886
Country of Origin
China
Dimensions
Thread Size
M10-1.50
Flange Diameter
21.8 mm
Thickness
10mm
Diameter 2
17mm
Details
CAD Available
Yes
Item
Flange Nut
Material
Steel
Material Grade/Class
Class 10
Finish
Black Phosphate
Standards
DIN 6923
System of Measurement
Metric
Thread Direction
Right Hand
Thread Type
Coarse
Driver Type
#15 Wrench
dia3
20mm
Style
Non-Serrated
Description
A flange nut has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface.
