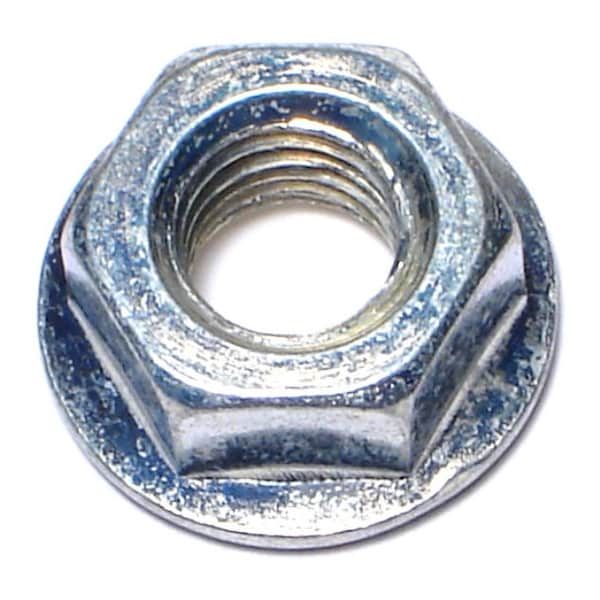

Flange Nut, M8-1.25, Steel, Class 8, Zinc Plated, 10 PK
Mfr # 76124
Zoro # G302520999
CAD Available
product price: $5.72
/pk 10, $0.57/ea
Sold in multiples of 2 for $11.44
Key Features
CAD Drawing
Thread Size
M8-1.25
Material
Steel
Material Grade/Class
Class 8
Finish
Zinc Plated
Flange Diameter
17.9 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
76124
Zoro #
G302520999
UPC #
738287761245
Country of Origin
China
Dimensions
Thread Size
M8-1.25
Flange Diameter
17.9 mm
Thickness
8mm
Diameter 2
15mm
Details
CAD Available
Yes
Item
Flange Nut
Material
Steel
Material Grade/Class
Class 8
Finish
Zinc Plated
Standards
DIN 6923
System of Measurement
Metric
Thread Direction
Right Hand
Thread Type
Coarse
Driver Type
#13 Wrench
Style
Non-Serrated
dia3
17mm
Description
A flange nut has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface.
