  15. Fusible, Disconnect Switch, General Duty, 240 V, DPST, Indoor/Outdoor

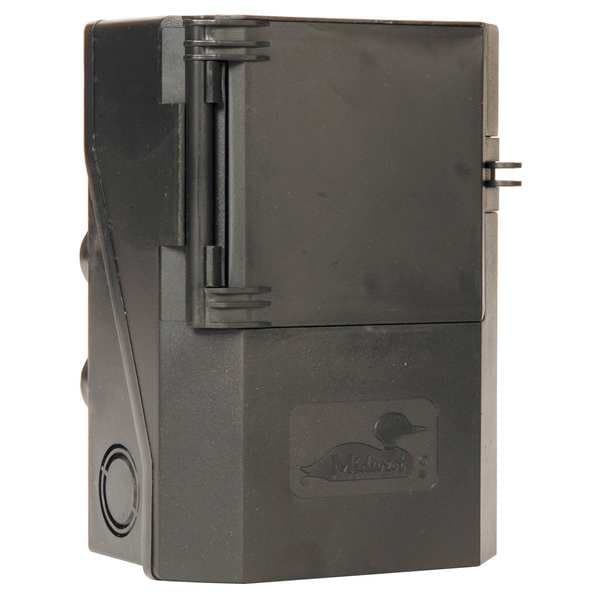

Midwest Fusible, Disconnect Switch, General Duty, 240 V, DPST, Indoor/Outdoor P065F - main

CAD Drawings

Download CAD Files

Fusible, Disconnect Switch, General Duty, 240 V, DPST, Indoor/Outdoor

  • Mfr # P065F

  • Zoro # G2146417

CAD Available
product price: $57.00
/ea

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P065F
Zoro #
G2146417
UPC #
094714076529
Country of Origin
Mexico

Dimensions

Height
8 in
Depth
3 7/64 in
Width
5 51/64 in

Details

Item
Disconnect Switch
Protection Method
Fusible
Contact Form
DPST
Current Rating
60 A
Phase
Single
For Fuse Class
Class H
Environment
Indoor/Outdoor
Enclosure Type
NEMA 3R
HP
10 HP @ 240 V
Voltage
240 V
Housing Material
Plastic
Standards
UL/CUL
NEMA Enclosure Type
3R
Short Circuit Protection
Fuse
Receptacle Type
No Receptacle Included
Duty
General
Metallic / Non-Metallic
Non-Metallic
Fusible / Nonfusible
Fusible
Max. HP @ 240V
10 hp
Number of Poles
2
Number of Wires
2
Amps
60 A
Switch Design
Pull-out
Horsepower @ 240V AC
10 hp
For Environment
Indoor/Outdoor
CAD Available
Yes

Description

The MIDWEST - P065F is a Safety Disconnect Switch, an essential industrial electrical device designed to interrupt the flow of electric current to specific circuits or equipment. This device is primarily utilized by industry professionals for maintenance, repair, and emergency stoppage purposes across various sectors such as manufacturing, construction, and energy production. It aims to contribute to workplace safety by aiming to prevent accidental startups or electrical shocks during servicing operations.

  • Amps: This switch is rated for a 60 A load; performance may vary based on conditions.
  • Contact Form: The DPST contact form allows control over multiple circuits with normally open (NO) or closed (NC) states.
  • Duty: Classified as 'General', it's suitable for standard applications and environments.
  • Enclosure Type: NEMA 3R rated enclosure designed for use in certain environmental conditions such as dust, water, corrosion and external ice formation. Actual performance may vary.
  • Environment Compatibility: Suitable for both indoor and outdoor installations depending on specific requirements.
  • Fuse Class Compatibility: Compatible with Class H fuses which are intended to work within specified parameters.
