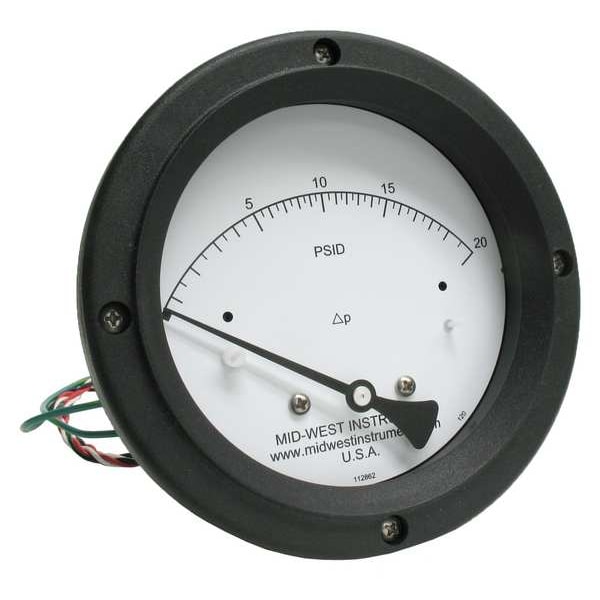

Midwest Instrument Differential Pressure Gauge and Switch 120AC-00-O-AA-20P - main

Differential Pressure Gauge and Switch

  • Mfr # 120AC-00-O-AA-20P

  • Zoro # G002016280

product price: $314.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120AC-00-O-AA-20P
Zoro #
G002016280
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
4 1/2 in
Bolt Circle Diameter
5.63 in
For Panel Cut-Out Size
5.3 in
For Panel Cutout Diameter
5.3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 110 psid
Sensor Type
Piston
Socket Material
Ceramic/Stainless Steel
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Case Material
Plastic
Seal Material
Buna-N
Gauge Case Material
Plastic
Relay Type
SPDT
Gauge Accuracy
+/-3-2-3%
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Process Temperature Range
-40 Degrees to 200 Degrees F
Includes Calibration Certificate
No
Adjustable Set Points
Yes
IP/NEMA Rating
IP65, NEMA 4X
Maximum Working Static Pressure
6,000 psi
Blowout Safety Back
No
O-Ring Material
Buna-N
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Switch Electrical Requirements
0.25A @ 125V AC/DC
Non-Sparking
No
Dial Face Material
Aluminum
Removable Bezel
No
Movement Material
Stainless Steel
Switch Contact Type
SPDT
Includes Mounting Hardware
No
Repeatability
1%
Sensor Material
Buna-N
Panel-Mountable
Yes
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Panel Mount Characteristics
5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
Number of Switches
1
Compatible Process Media
Pressure Drop
Case Shape
Round
Includes Vent Plug
No
Power Source
125V AC/DC
Lens Material
Shatter Resistant Acrylic
Hazardous Location Rating
Not Rated
Burst Pressure
6,000 psi
Pressure Gauge Type
Differential Pressure Gauge with Switch
Case Construction
Hermetically Sealed
Accuracy Grade
ASME B40.1 Grade B
Dial Color
White
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Pressure Measurement - Maximum
110 psid
Pressure Measurement - Minimum
0 psid
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi
Switch Contact Form
SPDT

Description

Differential Pressure Gauge and Switch
