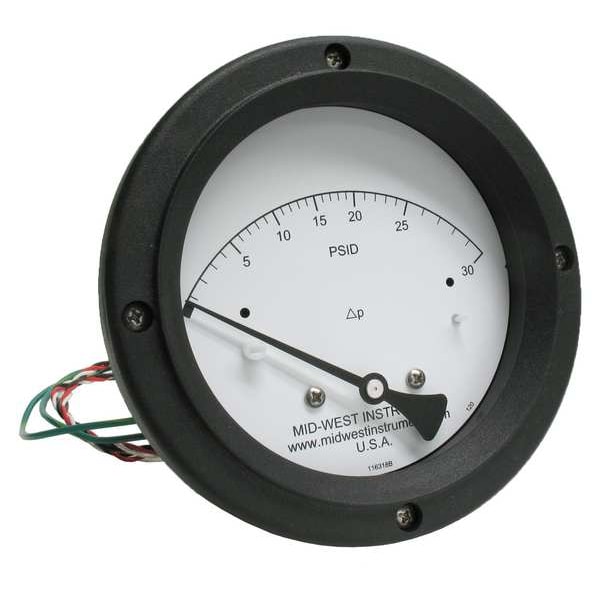

Midwest Instrument Differential Pressure Gauge and Switch 120AC-00-O-AA-30P - main

Differential Pressure Gauge and Switch

  • Mfr # 120AC-00-O-AA-30P

  • Zoro # G002016297

product price: $303.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120AC-00-O-AA-30P
Zoro #
G002016297
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
For Panel Cut-Out Size
5.3 in
Bolt Circle Diameter
5.63 in
Case Diameter
4 1/2 in
Manufacturer Warranty Length
5 yr
For Panel Cutout Diameter
5.3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 110 psid
Sensor Type
Piston
Socket Material
Ceramic/Stainless Steel
Gauge Case Material
Plastic
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Seal Material
Buna-N
Gauge Accuracy
+/-3-2-3%
Case Material
Plastic
Relay Type
SPDT
Compatible Process Media
Pressure Drop
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Panel-Mountable
Yes
Non-Sparking
No
Panel Mount Characteristics
5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
IP/NEMA Rating
IP65, NEMA 4X
Includes Mounting Hardware
No
Includes Vent Plug
No
Lens Material
Shatter Resistant Acrylic
Hazardous Location Rating
Not Rated
Adjustable Set Points
Yes
Removable Bezel
No
Sensor Material
Buna-N
Maximum Working Static Pressure
6,000 psi
Movement Material
Stainless Steel
Dial Face Material
Aluminum
Accuracy Grade
ASME B40.1 Grade B
Burst Pressure
6,000 psi
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Switch Contact Type
SPDT
Pressure Gauge Type
Differential Pressure Gauge with Switch
Number of Switches
1
Case Shape
Round
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Power Source
125V AC/DC
Dial Color
White
Repeatability
1%
Switch Electrical Requirements
0.25A @ 125V AC/DC
Blowout Safety Back
No
Case Construction
Hermetically Sealed
Includes Calibration Certificate
No
Process Temperature Range
-40 Degrees to 200 Degrees F
O-Ring Material
Buna-N
Pressure Measurement - Minimum
0 psid
Pressure Measurement - Maximum
110 psid
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Process Media Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
200 Degrees F
Working Static Pressure - Maximum
6,000 psi
Switch Contact Form
SPDT
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.

Description

Differential Pressure Gauge and Switch
