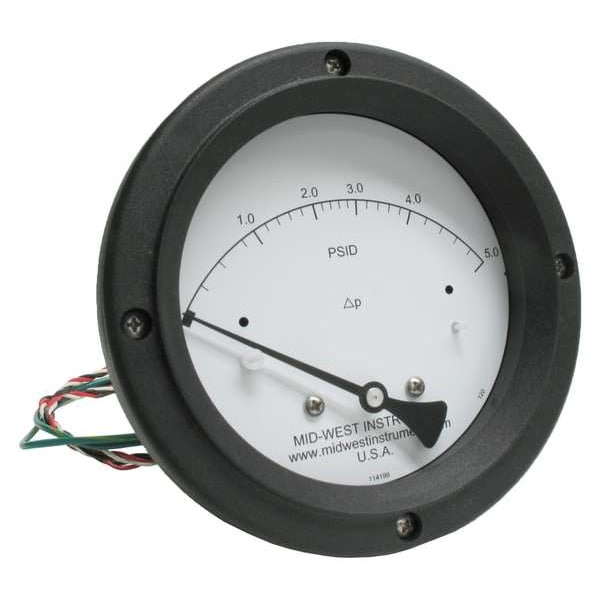

Midwest Instrument Differential Pressure Gauge and Switch 120AC-00-O-AA-5P - main

Differential Pressure Gauge and Switch

  • Mfr # 120AC-00-O-AA-5P

  • Zoro # G402016255

product price: $314.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120AC-00-O-AA-5P
Zoro #
G402016255
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Case Diameter
4 1/2 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
5.63 in
For Panel Cut-Out Size
5.3 in
For Panel Cutout Diameter
5.3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 110 psid
Sensor Type
Piston
Gauge Case Material
Plastic
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Seal Material
Buna-N
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Gauge Accuracy
+/-3-2-3%
Relay Type
SPDT
Panel-Mountable
Yes
Blowout Safety Back
No
Accuracy Grade
ASME B40.1 Grade B
Includes Vent Plug
No
Movement Material
Stainless Steel
Burst Pressure
6,000 psi
Hazardous Location Rating
Not Rated
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Case Shape
Round
IP/NEMA Rating
IP65, NEMA 4X
Dial Face Material
Aluminum
Maximum Working Static Pressure
6,000 psi
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Switch Contact Type
SPDT
Pressure Gauge Type
Differential Pressure Gauge with Switch
Compatible Process Media
Pressure Drop
Lens Material
Shatter Resistant Acrylic
Dial Color
White
Includes Calibration Certificate
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Number of Switches
1
Panel Mount Characteristics
5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
Switch Electrical Requirements
0.25A @ 125V AC/DC
Repeatability
1%
Power Source
125V AC/DC
Includes Mounting Hardware
No
O-Ring Material
Buna-N
Non-Sparking
No
Process Temperature Range
-40 Degrees to 200 Degrees F
Adjustable Set Points
Yes
Removable Bezel
No
Sensor Material
Buna-N
Case Construction
Hermetically Sealed
IP Rating
IP65
Operating Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Operating Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Pressure Measurement - Minimum
0 psid
Pressure Measurement - Maximum
110 psid
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi
Switch Contact Form
SPDT

Description

Differential Pressure Gauge and Switch
