  5. Industrial Compound Gauge, 30 to 0 to 30 psi, 4 in Dial, 1/2 in NPT, Bottom Location

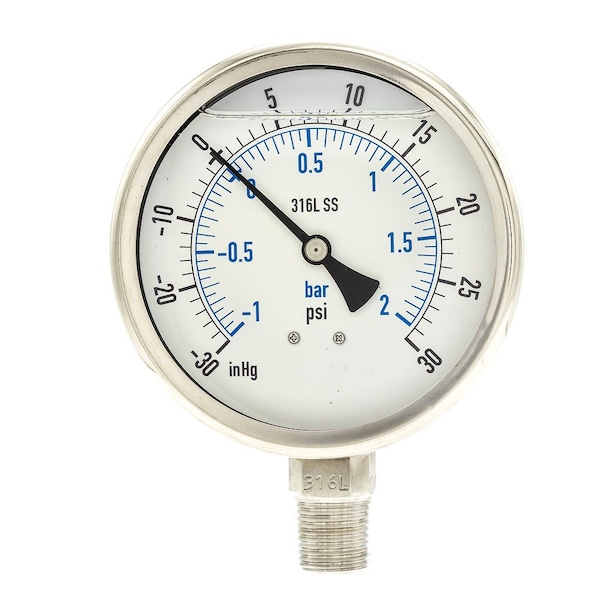

Pic Gauges Industrial Compound Gauge, 30 to 0 to 30 psi, 4 in Dial, 1/2 in NPT, Bottom Location PRO-301L-402CC-01 - main

Industrial Compound Gauge, 30 to 0 to 30 psi, 4 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # PRO-301L-402CC-01

  • Zoro # G8729454

product price:  $43.89
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRO-301L-402CC-01
Zoro #
G8729454
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 in
Length
5.26"
Case Depth
1.74 in
Nominal Dial Size
4 in
Case Diameter
4.3 in
Manufacturer Warranty Length
1 yr
Nominal Dial Diameter
4 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial
Gauge Case Material
Stainless Steel
Series
300
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0 to 30
Primary Scale Units
in Hg/psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1/0.5
For Use With
Brass, Industrial Applications, Media Compatible with Copper Alloy
Smallest Graduation
0.5 psi, 1 in Hg
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Case Color
Metallic
Gauge Application
In Applications Where Vibration or Pulsation is Present
Gauge Special Options
Heavy Duty
Graduations
10 in Hg, 5 psi
Case Material
Stainless Steel
Includes
Vent Plug
Socket Material
316 Stainless Steel
Standards
ASME
Connection Type
MNPT
Wetted Materials
Stainless Steel
Pressure Gauge Type
Industrial Pressure Gauge
Dial Face Material
Stainless Steel
Pointer Material
Aluminum
Gauge Case Liquid
Glycerin
Accuracy Grade
ASME B40.100 Grade A
Cleaned for Oxygen Service
No
Freeze Resistant Movement
No
Non-Sparking
No
Field Fillable
No
Process Connection Gender
Male
Secondary Pressure Range
0 to 2
Sensor Material
316 Stainless Steel
Pressure Range Type
Compound
Secondary Scale Units
bar
Dial Color
White
Scale Type
Dual
Accuracy Scale
Mid-Scale
Vibration Resistance
Liquid-Filled
Dry Dampening Feature
None
Pointer Color
Black
Ambient Operating Temperature Range
30 Degrees to 160 Degrees F
Includes Calibration Certificate
No
Bezel Mounting Type
Fixed
Includes Mounting Hardware
No
Includes Vent Plug
No
Bezel Material
Stainless Steel
Removable Bezel
No
Maximum Pressure
30
Operating Temperature Range
30 Degrees to 160 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Vacuum Measurement - Minimum
0 bar
Secondary Scale Vacuum Measurement - Maximum
2 bar
Case Liquid
Glycerin
Compatible with Series
300
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 bar
Process Media Temperature - Minimum
30 Degrees F
Secondary Scale Pressure Measurement - Maximum
2 bar
Primary Scale Vacuum Measurement - Maximum
30 psi
Operating Temperature - Minimum
30 Degrees F
Process Media Temperature - Maximum
160 Degrees F
Primary Scale Pressure Measurement - Maximum
30 psi
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
160 Degrees F

Description

Industrial Compound Gauge, Nominal Dial Size 4 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
