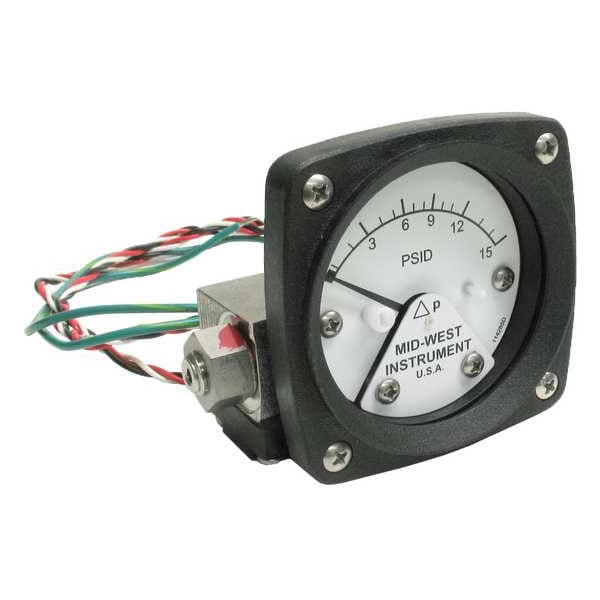

Midwest Instrument Differential Pressure Gauge and Switch 120SA-00-O-AA-15P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SA-00-O-AA-15P

  • Zoro # G702016054

product price: $463.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SA-00-O-AA-15P
Zoro #
G702016054
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
3.5 in
For Panel Cut-Out Size
3 in
Case Diameter
2 1/2 in
For Panel Cutout Diameter
3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Case Material
Plastic
Gauge Accuracy
+/-3-2-3%
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Gauge Case Material
Plastic
Socket Material
316 SS body
Relay Type
SPDT
Seal Material
Buna-N
Includes Vent Plug
No
Process Temperature Range
-40 Degrees to 200 Degrees F
Blowout Safety Back
No
Includes Calibration Certificate
No
O-Ring Material
Buna-N
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Case Shape
Round
Burst Pressure
6,000 psi
Movement Material
Stainless Steel
Dial Color
White
Panel-Mountable
Yes
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Pressure Gauge Type
Differential Pressure Gauge with Switch
Repeatability
1%
Non-Sparking
No
Case Construction
Hermetically Sealed
Accuracy Grade
ASME B40.1 Grade B
Adjustable Set Points
Yes
Number of Switches
1
Compatible Process Media
Pressure Drop
Includes Mounting Hardware
No
Panel Mount Characteristics
3 in Dia Panel Cutout and 0.19 in Holes 3 1/2 in Dia Bolt Circle
Power Source
125V AC/DC
Hazardous Location Rating
Not Rated
Maximum Working Static Pressure
6,000 psi
Switch Contact Type
SPDT
Switch Electrical Requirements
0.25A @ 125V AC/DC
Dial Face Material
316 Stainless Steel
Removable Bezel
No
Lens Material
Shatter Resistant Acrylic
Sensor Material
Buna-N
IP/NEMA Rating
IP65, NEMA 4X
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Process Media Temperature - Maximum
200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Pressure Measurement - Maximum
110 psid
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
-40 Degrees F
Switch Contact Form
SPDT
Working Static Pressure - Maximum
6,000 psi
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.

Description

Differential Pressure Gauge and Switch
