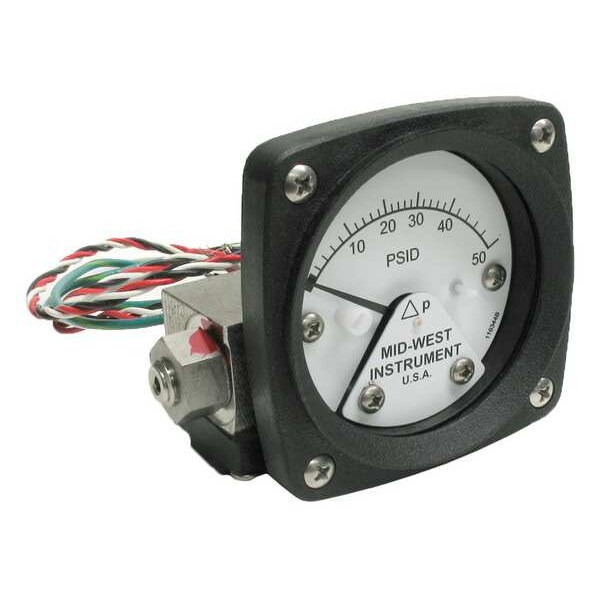

Midwest Instrument Differential Pressure Gauge and Switch 120SA-00-O-AA-50P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SA-00-O-AA-50P

  • Zoro # G102016081

product price: $463.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SA-00-O-AA-50P
Zoro #
G102016081
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
For Panel Cut-Out Size
3 in
Case Diameter
2 1/2 in
Bolt Circle Diameter
3.5 in
For Panel Cutout Diameter
3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Relay Type
SPDT
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Socket Material
316 SS body
Gauge Accuracy
+/-3-2-3%
Seal Material
Buna-N
Case Material
Plastic
Gauge Case Material
Plastic
Case Shape
Round
Repeatability
1%
Non-Sparking
No
Removable Bezel
No
Panel-Mountable
Yes
Number of Switches
1
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Movement Material
Stainless Steel
Hazardous Location Rating
Not Rated
Compatible Process Media
Pressure Drop
Includes Calibration Certificate
No
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Dial Face Material
316 Stainless Steel
Switch Contact Type
SPDT
Dial Color
White
Pressure Gauge Type
Differential Pressure Gauge with Switch
Maximum Working Static Pressure
6,000 psi
Switch Electrical Requirements
0.25A @ 125V AC/DC
IP/NEMA Rating
IP65, NEMA 4X
Sensor Material
Buna-N
Includes Mounting Hardware
No
Adjustable Set Points
Yes
Power Source
125V AC/DC
Accuracy Grade
ASME B40.1 Grade B
Blowout Safety Back
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Includes Vent Plug
No
Burst Pressure
6,000 psi
O-Ring Material
Buna-N
Case Construction
Hermetically Sealed
Process Temperature Range
-40 Degrees to 200 Degrees F
Lens Material
Shatter Resistant Acrylic
Panel Mount Characteristics
3 in Dia Panel Cutout and 0.19 in Holes 3 1/2 in Dia Bolt Circle
Pressure Measurement - Minimum
0 psid
Pressure Measurement - Maximum
110 psid
IP Rating
IP65
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Switch Contact Form
SPDT
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi

Description

Differential Pressure Gauge and Switch
