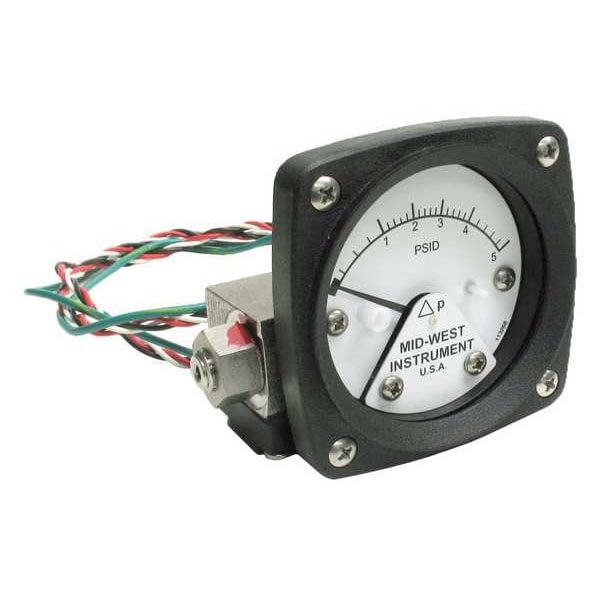

Midwest Instrument Differential Pressure Gauge and Switch 120SA-00-O-AA-5P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SA-00-O-AA-5P

  • Zoro # G402015975

product price: $485.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SA-00-O-AA-5P
Zoro #
G402015975
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
For Panel Cut-Out Size
3 in
Case Diameter
2 1/2 in
Bolt Circle Diameter
3.5 in
For Panel Cutout Diameter
3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Case Material
Plastic
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Relay Type
SPDT
Socket Material
316 SS body
Seal Material
Buna-N
Gauge Case Material
Plastic
Gauge Accuracy
+/-3-2-3%
Switch Electrical Requirements
0.25A @ 125V AC/DC
Case Shape
Round
O-Ring Material
Buna-N
Process Temperature Range
-40 Degrees to 200 Degrees F
Panel Mount Characteristics
3 in Dia Panel Cutout and 0.19 in Holes 3 1/2 in Dia Bolt Circle
Hazardous Location Rating
Not Rated
Adjustable Set Points
Yes
Burst Pressure
6,000 psi
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Compatible Process Media
Pressure Drop
Number of Switches
1
Dial Face Material
316 Stainless Steel
Removable Bezel
No
IP/NEMA Rating
IP65, NEMA 4X
Includes Mounting Hardware
No
Accuracy Grade
ASME B40.1 Grade B
Movement Material
Stainless Steel
Includes Calibration Certificate
No
Includes Vent Plug
No
Case Construction
Hermetically Sealed
Lens Material
Shatter Resistant Acrylic
Switch Contact Type
SPDT
Power Source
125V AC/DC
Repeatability
1%
Maximum Working Static Pressure
6,000 psi
Dial Color
White
Blowout Safety Back
No
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Pressure Gauge Type
Differential Pressure Gauge with Switch
Panel-Mountable
Yes
Sensor Material
Buna-N
Non-Sparking
No
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Pressure Measurement - Maximum
110 psid
Pressure Measurement - Minimum
0 psid
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
NEMA Enclosure Rating
4X
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Switch Contact Form
SPDT
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi

Description

Differential Pressure Gauge and Switch
