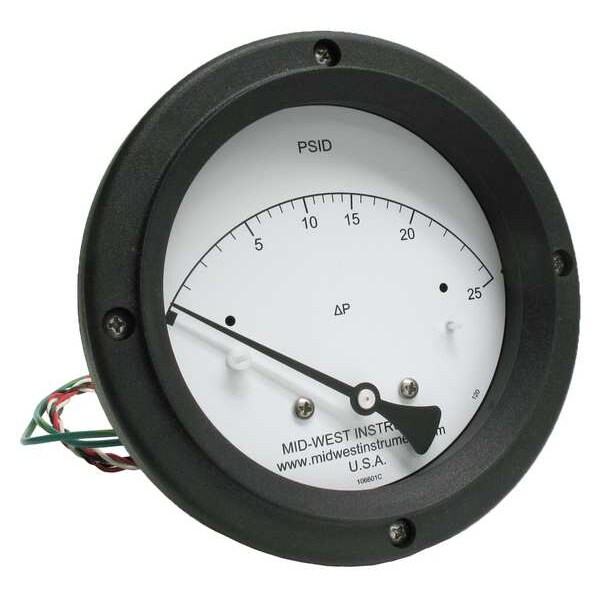

Midwest Instrument Differential Pressure Gauge and Switch 120SC-00-O-AA-25P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SC-00-O-AA-25P

  • Zoro # G002016198

product price: $493.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SC-00-O-AA-25P
Zoro #
G002016198
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Bolt Circle Diameter
5.63 in
For Panel Cut-Out Size
5.3 in
Case Diameter
4 1/2 in
For Panel Cutout Diameter
5.3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Seal Material
Buna-N
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Case Material
Plastic
Gauge Case Material
Plastic
Gauge Accuracy
+/-3-2-3%
Relay Type
SPDT
Socket Material
316 SS body
Maximum Working Static Pressure
6,000 psi
Compatible Process Media
Pressure Drop
Lens Material
Shatter Resistant Acrylic
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Switch Electrical Requirements
0.25A @ 125V AC/DC
Process Temperature Range
-40 Degrees to 200 Degrees F
Pressure Gauge Type
Differential Pressure Gauge with Switch
Case Shape
Round
Accuracy Grade
ASME B40.1 Grade B
Switch Contact Type
SPDT
Hazardous Location Rating
Not Rated
Case Construction
Hermetically Sealed
Non-Sparking
No
Number of Switches
1
Dial Color
White
Movement Material
Stainless Steel
Panel-Mountable
Yes
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Blowout Safety Back
No
Includes Calibration Certificate
No
Sensor Material
Buna-N
Includes Mounting Hardware
No
O-Ring Material
Buna-N
Removable Bezel
No
Includes Vent Plug
No
Burst Pressure
6,000 psi
Power Source
125V AC/DC
Adjustable Set Points
Yes
Repeatability
1%
Dial Face Material
316 Stainless Steel
IP/NEMA Rating
IP65, NEMA 4X
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Panel Mount Characteristics
5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
Pressure Measurement - Minimum
0 psid
NEMA Enclosure Rating
4X
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Maximum
110 psid
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.
Working Static Pressure - Maximum
6,000 psi
Switch Contact Form
SPDT

Description

Differential Pressure Gauge and Switch
