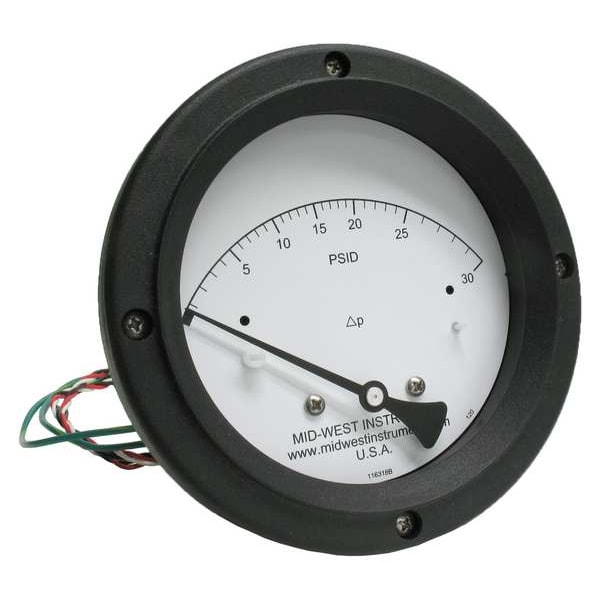

Midwest Instrument Differential Pressure Gauge and Switch 120SC-00-O-AA-30P - main

Differential Pressure Gauge and Switch

  • Mfr # 120SC-00-O-AA-30P

  • Zoro # G902016250

product price: $493.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
120
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120SC-00-O-AA-30P
Zoro #
G902016250
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
For Panel Cut-Out Size
5.3 in
Case Diameter
4 1/2 in
Bolt Circle Diameter
5.63 in
Manufacturer Warranty Length
5 yr
For Panel Cutout Diameter
5.3 in

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
120
Process Connection Gender
Female
Application
Refrigeration, Compressors, Filtration Monitoring, Pressure Detection, Hydraulics, Pumps, Valves
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 110 psid
Sensor Type
Piston
Standards
CE Marked, CSA B51-09, CSA Listed, RoHS Compliant, UL Listed
Relay Type
SPDT
Gauge Case Material
Plastic
Case Material
Plastic
Seal Material
Buna-N
Gauge Accuracy
+/-3-2-3%
Socket Material
316 SS body
Adjustable Set Points
Yes
Non-Sparking
No
Hazardous Location Rating
Not Rated
Repeatability
1%
Panel Mount Characteristics
5.30 in Dia Panel Cutout and 0.19 in Holes 5.63 in Dia Bolt Circle
Includes Calibration Certificate
No
Accuracy Details
+/-3.00/2.00/3.00% Full Scale Ascending ASME B40.1 Grade B
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Lens Material
Shatter Resistant Acrylic
Dial Color
White
Sensor Material
Buna-N
Power Source
125V AC/DC
Compatible Process Media
Pressure Drop
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Shape
Round
IP/NEMA Rating
IP65, NEMA 4X
Includes Vent Plug
No
Maximum Working Static Pressure
6,000 psi
Blowout Safety Back
No
Movement Material
Stainless Steel
Switch Electrical Requirements
0.25A @ 125V AC/DC
Number of Switches
1
O-Ring Material
Buna-N
Panel-Mountable
Yes
Switch Contact Type
SPDT
Over-Pressure Limit
Over-Range Protection to Maximum Pressure
Dial Face Material
316 Stainless Steel
Accuracy Grade
ASME B40.1 Grade B
Case Construction
Hermetically Sealed
Removable Bezel
No
Includes Mounting Hardware
No
Pressure Gauge Type
Differential Pressure Gauge with Switch
Burst Pressure
6,000 psi
Operating Temperature - Minimum
-40 Degrees F
Pressure Measurement - Minimum
0 psid
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Pressure Measurement - Maximum
110 psid
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
200 Degrees F
Switch Contact Form
SPDT
Working Static Pressure - Maximum
6,000 psi
Product Type
Piston type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Performance Testing, Heat Exchanger. 5 Year Warranty.

Description

Differential Pressure Gauge and Switch
