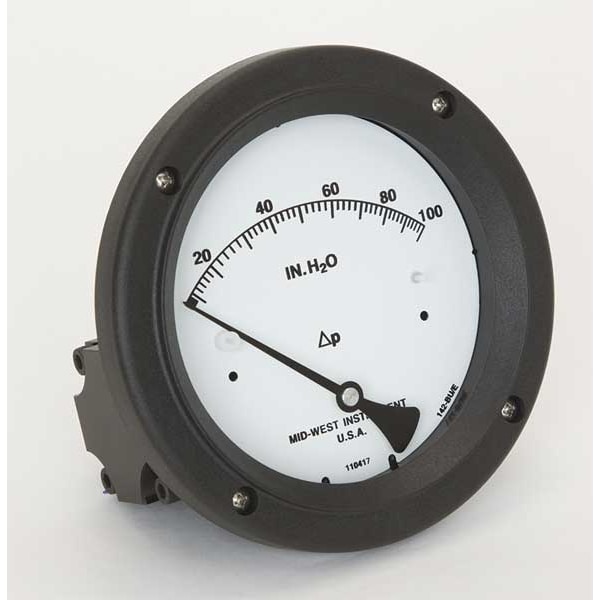

Midwest Instrument Pressure Gauge, 0 to 100 In H2O 142-AC-00-OO-100H - main

Pressure Gauge, 0 to 100 In H2O

  • Mfr # 142-AC-00-OO-100H

  • Zoro # G0018277

product price: $359.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-AC-00-OO-100H
Zoro #
G0018277
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Gauge Nominal Dial Size
4 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Case Diameter
6 1/4 in
Manufacturer Warranty Length
5 yr
Case Depth
1.18 in
Bolt Circle Diameter
5.63 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 100 in wc
Sensor Type
Diaphragm
Rated Total Pressure
3,000 psi
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Gauge Connection Location
Back
Gauge Accuracy
+/-3-2-3%
Diaphragm Material
Buna-N
Includes
Instructions
Basic Gauge Wetted Parts
Buna-N
Differential Pressure Range
0 to 100 in wc
Scale Type
Pressure
Seal Material
Buna-N
Body Material
Aluminum
Differential Pressure Range Value
0 to 100
Dial Material
Engineered Plastic
Basic Gauge Case Material
Metal
Differential Pressure Range Units
in wc
Gauge Primary Range Smallest Graduation
2
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Gauge Connection Type
FNPT
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Adjustable Set Points
Yes
Non-Sparking
No
Accuracy Grade
ASME B40.1 Grade B
Lens Material
Acrylic
Dial Color
White
Movement Type
Rotary
Case Construction
Glass Reinforced
Includes Mounting Hardware
No
IP/NEMA Rating
IP65, NEMA 4X
Includes Vent Plug
No
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Pressure Gauge Type
Differential Pressure Gauge
Includes Calibration Certificate
No
Process Temperature Range
-40 Degrees to 200 Degrees F
Bezel Gasket Material
Buna-N
Primary Scale Minor Graduations
2
Gauge Case Material
Plastic
Repeatability
1%
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Removable Bezel
No
Sensor Material
Buna-N
Case Shape
Round
Compatible Process Media
Fluid, Wet Gas
Movement Material
316 Stainless Steel
Blowout Safety Back
No
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Maximum Working Static Pressure
3,000 psig
Pressure Scale Minor Graduations
2
Process Media Temperature - Maximum
200 Degrees F
Number of Switches
0
Pressure Measurement - Maximum
100 in wc
IP Rating
IP65
NEMA Enclosure Rating
4X
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 in wc
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 100 In WC, Pressure Range Minor Div 2.0 In WC, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 4-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
