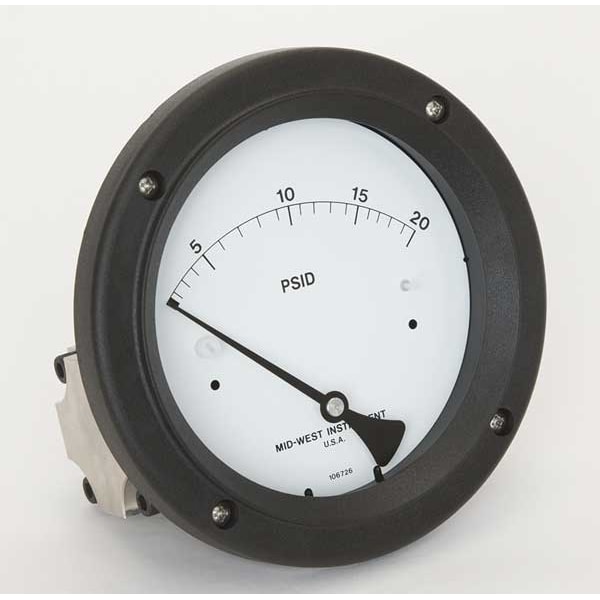

Midwest Instrument Pressure Gauge, 0 to 20 psi 142-AC-00-OO-20P - main

Pressure Gauge, 0 to 20 psi

  • Mfr # 142-AC-00-OO-20P

  • Zoro # G0018322

product price: $353.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
142-AC-00-OO-20P
Zoro #
G0018322
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Gauge Nominal Dial Size
4 1/2 in
Case Diameter
6 1/4 in
Case Depth
1.18 in
Bolt Circle Diameter
5.63 in
Manufacturer Warranty Length
5 yr

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 20 psid
Sensor Type
Diaphragm
Differential Pressure Range Units
psi
Dial Material
Engineered Plastic
Diaphragm Material
Buna-N
Includes
Instructions
Gauge Primary Range Smallest Graduation
1
Differential Pressure Range
0 to 20 psi
Gauge Accuracy
+/-3-2-3%
Body Material
Aluminum
Scale Type
Pressure
Seal Material
Buna-N
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Gauge Connection Location
Back
Basic Gauge Wetted Parts
Buna-N
Basic Gauge Case Material
Metal
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Gauge Connection Type
FNPT
Differential Pressure Range Value
0 to 20
Rated Total Pressure
3,000 psi
Socket Material
Ceramic/Stainless Steel
Case Material
Plastic
Includes Mounting Hardware
No
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Repeatability
1%
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Includes Vent Plug
No
Non-Sparking
No
Hazardous Location Rating
Not Rated
Gauge Case Material
Plastic
Primary Scale Minor Graduations
1
Accuracy Grade
ASME B40.1 Grade B
Compatible Process Media
Fluid, Wet Gas
Pressure Gauge Type
Differential Pressure Gauge
Removable Bezel
No
Dial Color
White
Lens Material
Acrylic
Maximum Working Static Pressure
3,000 psig
Movement Type
Rotary
Panel-Mountable
Yes
Blowout Safety Back
No
Case Shape
Round
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Construction
Glass Reinforced
Bezel Gasket Material
Buna-N
Adjustable Set Points
Yes
Movement Material
316 Stainless Steel
Includes Calibration Certificate
No
IP/NEMA Rating
IP65, NEMA 4X
Sensor Material
Buna-N
Pressure Scale Minor Graduations
1
NEMA Enclosure Rating
4X
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Pressure Measurement - Maximum
20 psid
Number of Switches
0
Pressure Measurement - Minimum
0 psid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.
Working Static Pressure - Maximum
3,000 psig

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 20 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 4-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
