  9. Pressure Gauge, 0 to 25 psi

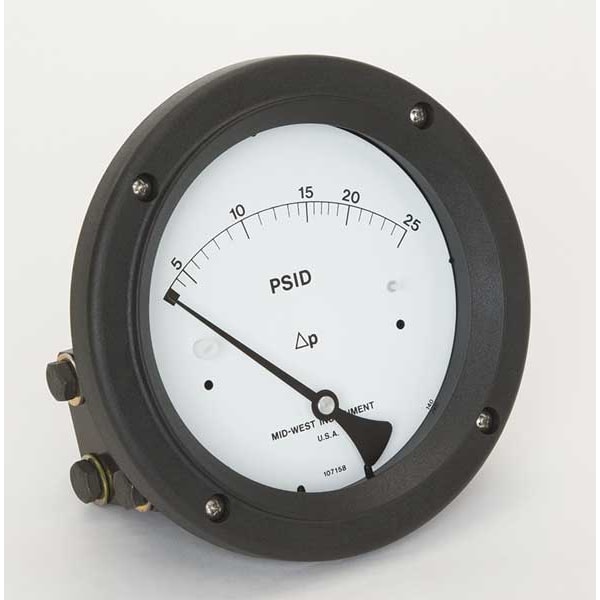

Midwest Instrument Pressure Gauge, 0 to 25 psi 142-AC-00-OO-25P - main

Pressure Gauge, 0 to 25 psi

  • Mfr # 142-AC-00-OO-25P

  • Zoro # G0018331

product price: $360.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
Model 142
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
142-AC-00-OO-25P
Zoro #
G0018331
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
4 1/2 in
Differential Gauge Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Gauge Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
6 1/4 in
Case Depth
1.18 in
Bolt Circle Diameter
5.63 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
Model 142
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
Aluminum
Pressure Range
0 to 25 psid
Sensor Type
Diaphragm
Differential Pressure Range Units
psi
Dial Material
Engineered Plastic
Scale Type
Pressure
Basic Gauge Wetted Parts
Buna-N
Differential Pressure Range Value
0 to 25
Seal Material
Buna-N
Includes
Instructions
Gauge Accuracy
+/-3-2-3%
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Body Material
Aluminum
Diaphragm Material
Buna-N
Differential Gauge Connection Type
FNPT
Rated Total Pressure
3,000 psi
Differential Pressure Range
0 to 25 psi
Gauge Connection Location
Back
Gauge Primary Range Smallest Graduation
1
Basic Gauge Case Material
Metal
Case Material
Plastic
Socket Material
Ceramic/Stainless Steel
Removable Bezel
No
Movement Material
316 Stainless Steel
Includes Vent Plug
No
Sensor Material
Buna-N
Adjustable Set Points
Yes
Primary Scale Minor Graduations
1
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Repeatability
1%
Pressure Gauge Type
Differential Pressure Gauge
Case Shape
Round
Process Temperature Range
-40 Degrees to 200 Degrees F
Includes Calibration Certificate
No
Bezel Gasket Material
Buna-N
Movement Type
Rotary
Panel-Mountable
Yes
Hazardous Location Rating
Not Rated
Non-Sparking
No
Blowout Safety Back
No
Accuracy Grade
ASME B40.1 Grade B
Case Construction
Glass Reinforced
Dial Color
White
Lens Material
Acrylic
IP/NEMA Rating
IP65, NEMA 4X
Gauge Case Material
Plastic
Includes Mounting Hardware
No
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Maximum Working Static Pressure
3,000 psig
Compatible Process Media
Fluid, Wet Gas
NEMA Enclosure Rating
4X
Pressure Measurement - Maximum
25 psid
Process Media Temperature - Maximum
200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Pressure Measurement - Minimum
0 psid
Number of Switches
0
Operating Temperature - Minimum
-40 Degrees F
Pressure Scale Minor Graduations
1
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP65
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 25 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 4-1/2 In In, Aluminum Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
