  9. Pressure Gauge, 0 to 30 psi

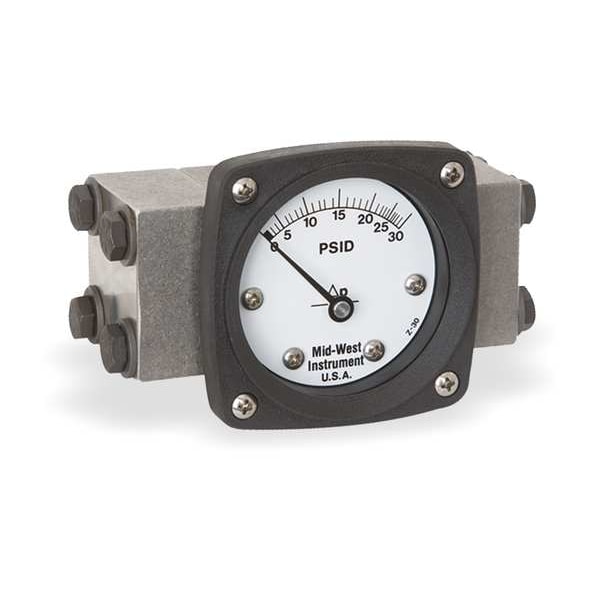

Midwest Instrument Pressure Gauge, 0 to 30 psi 140-SA-00-OO-30P - main

Pressure Gauge, 0 to 30 psi

  • Mfr # 140-SA-00-OO-30P

  • Zoro # G0017595

product price: $655.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3-2-3%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
140
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
140-SA-00-OO-30P
Zoro #
G0017595
UPC #
-
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in
Manufacturers Warranty Length
5 yr
Gauge Nominal Dial Size
2 1/2 in
Differential Gauge Connection Size
1/4 in
Case Depth
0.78 in
Manufacturer Warranty Length
5 yr
Case Diameter
3 5/16 in
Bolt Circle Diameter
3.5 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Type
NPT
Series
140
Process Connection Gender
Female
Application
Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
Process Connection Location
Back
Housing Material
316 Stainless Steel
Pressure Range
0 to 30 psid
Sensor Type
Diaphragm
Basic Gauge Wetted Parts
Buna-N
Dial Material
Engineered Plastic
Basic Gauge Case Material
Metal
Body Material
316 Stainless Steel
Gauge Operating Temp. Range
-40 Degrees to 200 Degrees F
Rated Total Pressure
3,000 psi
Gauge Primary Range Smallest Graduation
1
Differential Pressure Range
0 to 30 psi
Differential Pressure Range Value
0 to 30
Diaphragm Material
Buna-N
Differential Gauge Connection Type
FNPT
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Accuracy
+/-3-2-3%
Standards
ASME, CE, CSA, EN, NACE, NEMA, RoHS, SAE, UL
Differential Pressure Range Units
psi
Scale Type
Pressure
Seal Material
Buna-N
Gauge Connection Location
Back
Includes
Instructions
Socket Material
Ceramic/Stainless Steel
Case Material
316 Stainless Steel
Movement Type
Rotary
Accuracy Grade
ASME B40.1 Grade B
Bezel Gasket Material
Buna-N
Non-Sparking
No
Includes Calibration Certificate
No
Dial Color
White
Movement Material
316 Stainless Steel
Gauge Case Material
316 Stainless Steel
Case Shape
Round
Includes Vent Plug
No
Sensor Material
Buna-N
Hazardous Location Rating
Not Rated
Maximum Working Static Pressure
3,000 psig
Panel Mount Characteristics
3 L Dia Holes on E Dia Bolt Circle
Adjustable Set Points
Yes
Repeatability
1%
Removable Bezel
No
IP/NEMA Rating
IP65, NEMA 4X
Panel-Mountable
Yes
Includes Mounting Hardware
No
Primary Scale Minor Graduations
1
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Construction
Glass Reinforced
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F
Pressure Gauge Type
Differential Pressure Gauge
Blowout Safety Back
No
NEMA Enclosure Rating
4X
Process Media Temperature - Maximum
200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Number of Switches
0
Pressure Scale Minor Graduations
1
IP Rating
IP65
Pressure Measurement - Minimum
0 psid
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Pressure Measurement - Maximum
30 psid
Working Static Pressure - Maximum
3,000 psig
Product Type
Diaphragm type Differential Pressure Gauge. Common applications for Filters, Strainers, Compressed Air, Hydraulic, Refrigerant, Pump Testing, Heat Exchangers, Water Treatments, Tank Levels, Flow Monitoring. 5 Year Warranty.

Description

Differential Pressure Gauge, Pressure Scale Type, Pressure Range 0 to 30 PSID, Pressure Range Minor Div 1.0 PSID, Rated Total Pressure 3000 PSIG, Full Scale Accuracy +/-3-2-3 %, Connection Size NPT 1/4 In FNPT In, Dial Size 2-1/2 In In, 316 Stainless Steel Body Material, Plastic Dial Material, Buna N Diaphragm Material, Buna N Seal Material, Includes Instructions, Warranty Length 5 Year, Ambient Operating Range -40 to 200 F
