  9. Pressure Gauge, 0 to 50 In H2O
Shop All Differential Pressure Gauges
Midwest Instrument

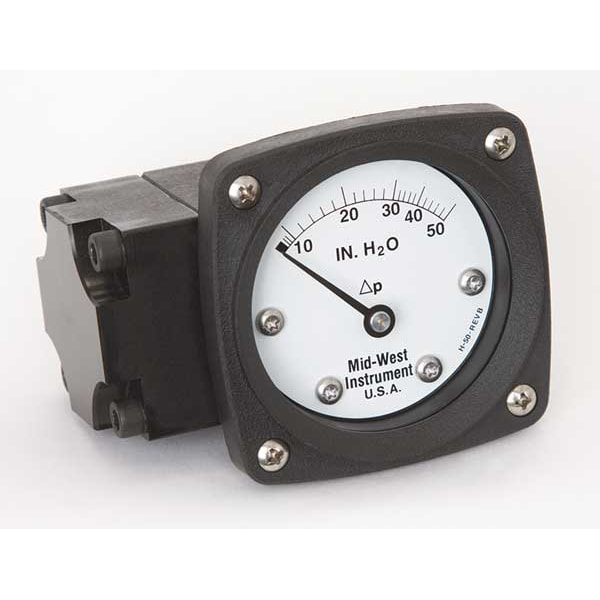

Pressure Gauge, 0 to 50 In H2O

Hover or click to zoom Tap to zoom
Key Features
  • Differential Pressure Gauge Type: Differential Pressure Gauge
  • Gauge Nominal Dial Size: 2 1/2 in
  • Basic Gauge Case Material: Metal
  • Basic Gauge Wetted Parts: Buna-N
  • Differential Gauge Connection Type: FNPT
  • Differential Gauge Connection Size: 1/4 in
  • Gauge Connection Location: Back
  • Differential Pressure Range Units: in wc
See full product details
$284.24
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Midwest Instrument #142-AA-00-OO-50H Specifications

  • Differential Pressure Gauge Type: Differential Pressure Gauge
  • Gauge Nominal Dial Size: 2 1/2 in
  • Basic Gauge Case Material: Metal
  • Basic Gauge Wetted Parts: Buna-N
  • Differential Gauge Connection Type: FNPT
  • Differential Gauge Connection Size: 1/4 in
  • Gauge Connection Location: Back
  • Differential Pressure Range Units: in wc
  • Differential Pressure Range Value: 0 to 50
  • Gauge Accuracy: +/-3-2-3%
  • Gauge Primary Range Smallest Graduation: 2
  • Body Material: Aluminum
  • Gauge Operating Temp. Range: -40 Degrees to 200 Degrees F
  • Seal Material: Buna-n
  • Scale Type: Pressure
  • Includes: Instructions
  • Rated Total Pressure: 3000 PSI
  • Dial Material: Engineered Plastic
  • Differential Pressure Range: 0 to 50 in wc
  • Item: Differential Pressure Gauge
  • Diaphragm Material: Buna-N
  • Manufacturers Warranty Length: 5 yr
  • Standards: ASME B1.20.1, ASME B40.100, CSA-C22.2 No. 14.25 and 30, EN-61010-1, NACE MR0175, NEMA Std. No. 250, SAE J514, UL Std. No. 50,508 and 1203
  • Series: Series 142
  • Connection Location: Back
  • Case Depth: 0.78 in
  • Brand and Series: MIDWEST INSTRUMENT 142
  • Sensor Material: Buna-N
  • Adjustable Set Points: Yes
  • Ambient Operating Temperature Range: -40 Degrees to 200 Degrees F
  • Includes Vent Plug: No
  • Includes Mounting Hardware: No
  • Process Connection Gender: Female
  • Nominal Dial Size: 2 1/2 in
  • Housing Material: Aluminum
  • Gauge Case Material: Plastic
  • Accuracy: +/-3-2-3%
  • Movement Material: 316 Stainless Steel
  • (Hidden) Series x Accuracy: +/-3-2-3% x 142
  • Repeatability: 1%
  • Process Connection Type: NPT
  • Pressure Range: 0 to 50 in wc
  • Process Connection Size: 1/4 in
  • Case Shape: Round
  • Movement Type: Rotary
  • Application - Max Pressure: For High Operating Pressure
  • Non-Sparking: No
  • Process Temperature Range: -40 Degrees to 200 Degrees F
  • Blowout Safety Back: No
  • Max Pressure Application: For High Operating Pressure
  • Case Construction: Glass Reinforced
  • Maximum Working Static Pressure: 3,000 psig
  • Compatible Process Media: Fluid, Wet Gas
  • Panel-Mountable: Yes
  • Process Connection Location: Back
  • (Hidden) max pressure differentiator: 3,000 psig x For High Operating Pressure
  • Lens Material: Acrylic
  • Accuracy Grade: ASME B40.1 Grade B
  • Sensor Type: Diaphragm
  • Case Diameter: 3 in
  • IP/NEMA Rating: IP65, NEMA 4X
  • Dial Color: White
  • Bezel Gasket Material: Buna-N
  • Includes Calibration Certificate: No
  • Application: Compressors, Filtration Monitoring, Flow Measurement, Pressure Detection, Hydraulics, Pumps, Refrigeration, Liquid Level Measurement, Water Purification or Irrigation
  • Primary Scale Minor Graduations: 2
  • Hazardous Location Rating: Not Rated
  • Pressure Gauge Type: Differential Pressure Gauge
  • Process Connection: 1/4 in NPT Female
  • Removable Bezel: No
  • Panel Mount Characteristics: 3 L Dia Holes on E Dia Bolt Circle
  • Manufacturer Warranty Length: 5 yr
  • Bolt Circle Diameter: 3.5 in
  • Country of Origin (subject to change): United States

Description

Differential Pressure Gauge, Gauge Nominal Dial Size 2 1/2 in, Basic Gauge Case Material Metal, Basic Gauge Wetted Parts Buna-N, Differential Gauge Connection Type FNPT, Differential Gauge Connection Size 1/4 in, Gauge Connection Location Back, Differential Pressure Range Units in wc, Differential Pressure Range Value 0 to 50, Gauge Accuracy +/-3-2-3 Percent, Body Material Aluminum, Gauge Primary Range Smallest Graduation 2, Diaphragm Material Buna-N, Seal Material Buna-N
