  11. Silent Turbine Vibrator, 270 lb.

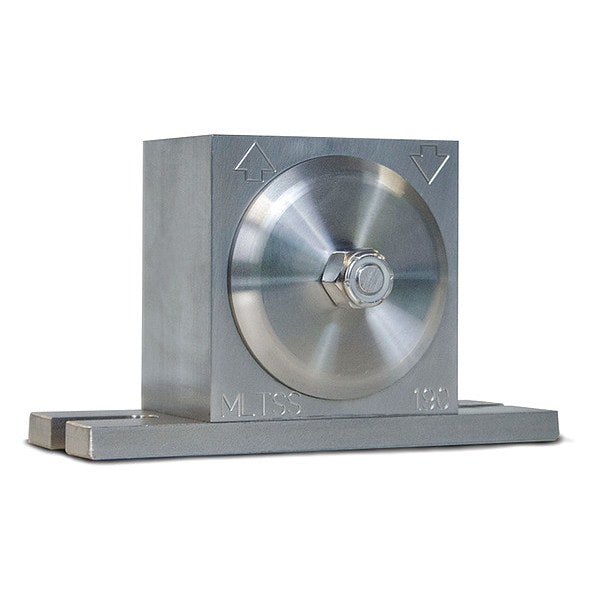

Millennium Silent Turbine Vibrator, 270 lb. MLTSS-190 - main

Silent Turbine Vibrator, 270 lb.

  • Mfr # MLTSS-190

  • Zoro # G8156181

product price: $483.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
270 lb
CFM @ 80 PSI
8.5
Speed @ 60 psi
5500 VPM
Overall Length
5-1/8"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MLTSS-190
Zoro #
G8156181
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
5-1/8"
Overall Width
3-3/8"
Overall Height
3-3/16"
Mount Hole Center-to-Center Length
89 mm
Mount Hole Size
10
Outlet Connection Size
3/8 in
Inlet Connection Size
1/4 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Turbine
Force Rating
270 lb
CFM @ 80 PSI
8.5
Speed @ 60 psi
5500 VPM
Speed @ 80 psi
7200 VPM
dB @ 60 psi
71
Bin Weight Capacity
2700 lb
dB @ 80 psi
71
Inlet Port
1/4" NPT
Outlet Port
3/8" NPT
Duty
Continuous
Mounting
Channel Iron and Mounting Plate Recommended
Max. Pressure
80 max.
Max. Temp.
200 Degrees F
Muffler
Optional
Application
Chemical, Food, Beverage, and Pharmaceutical Industries
Housing Material
Stainless steel
CFM @ 60 psi
7.5
Mounting Plate
No
Standards
OSHA
Maximum Operating Temperature
200 Degrees F
Vibration Speeds @ PSI
12,000 vpm @ 80 psi, 7,000 vpm @ 60 psi
Pneumatic Vibrator Type
Turbine
Outlet Connection Type
NPT
Weight
7 lb
Mount Plate Required
No
Air Flow Rate
7.5 cfm @ 60 psi, 8.5 cfm @ 80 psi
Mount Type
Channel Iron and Mounting Plate Recommended
Duty Cycle
Continuous
Force @ 80 psi
270 lbf
Maximum Vibration Speed
7,000 vpm
Series
MLTSS
Maximum Bin Weight Capacity
2,700 lb
Force @ 60 psi
160 lbf
Sound Level
71 dBA
Force @ PSI
160 lbf @ 60 psi, 270 lbf @ 80 psi
Maximum Force
270 lbf
Inlet Connection Type
NPT
Vibration Speed @ 60 psi
5,500 vpm
Vibration Speed @ 80 psi
7,200 vpm

Description

Pneumatic Vibrator, Housing Material Stainless Steel, Outlet Connection Size 3/8 in, Outlet Connection Type NPT, Air Flow Rate 7.5 cfm @ 60 psi, 8.5 cfm @ 80 psi, Maximum Force 270 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 7,000 vpm, Maximum Bin Weight Capacity 2,700 lb, Overall Height 3.19 in, Overall Length 4.49 in, Overall Width 3.39 in, Sound Level 71 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
