Shop MILLENNIUM

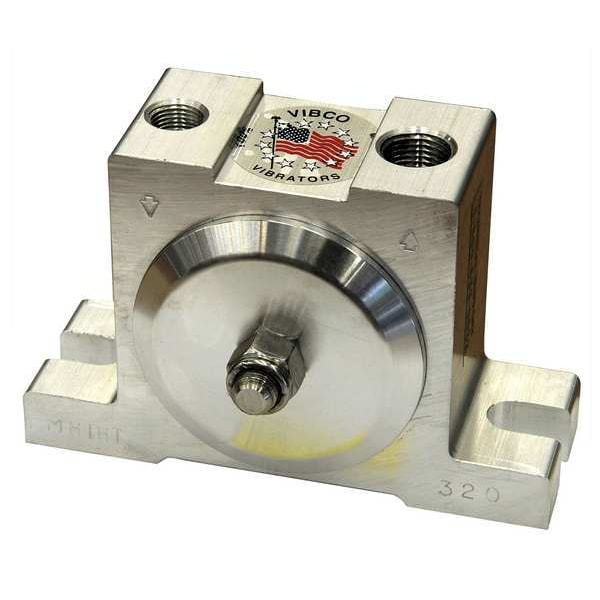

Silent Turbine Vibrator, 1300 lb.

  • Mfr # MHI-320HT

  • Zoro # G8444956

product price:
$
653.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
1300 lb
CFM @ 80 PSI
10
Speed @ 60 psi
7200 VPM
Overall Length
6-3/8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MHI-320HT
Zoro #
G8444956
UPC #
-
Country of Origin
United States
Item
Pneumatic Vibrator
Vibrator Type
Turbine
Force Rating
1300 lb
CFM @ 80 PSI
10
Speed @ 60 psi
7200 VPM
Speed @ 80 psi
10,000 VPM
dB @ 60 psi
70
dB @ 80 psi
70
Inlet Port
3/8" NPT
Outlet Port
1/2" NPT
Mounting Plate
No
Max. Temp.
350 Degrees F
Application
Beverage, Chemical, Food, Pharmaceutical Industries
Max. Pressure
80 max.
CFM @ 60 psi
9
Mounting
Channel Iron and Mounting Plate Recommended
Duty
Continuous
Muffler
Optional
Housing Material
Aluminum
Air Flow Rate
9 cfm @ 60 psi
Mount Type
Channel Iron and Mounting Plate Recommended
Maximum Force
1,300 lbf
Mount Plate Required
No
Vibration Speed @ 60 psi
7,200 vpm
Outlet Connection Type
NPT
Vibration Speed @ 80 psi
10,000 vpm
Maximum Vibration Speed
7,200 vpm
Duty Cycle
Continuous
Force @ 60 psi
675 lbf
Inlet Connection Type
NPT
Weight
4 lb
Force @ PSI
1,300 lbf @ 80 psi, 675 lbf @ 60 psi
Force @ 80 psi
1,300 lbf
Sound Level
70 dBA
Maximum Operating Temperature
350 Degrees F
Vibration Speeds @ PSI
7,200 vpm @ 60 psi
Pneumatic Vibrator Type
Turbine
Series
MHI

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/2 in, Outlet Connection Type NPT, Air Flow Rate 9 cfm @ 60 psi, Maximum Force 1,300 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 7,200 vpm, Overall Height 4.25 in, Overall Length 6.38 in, Overall Width 4 in, Sound Level 70 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 1,300 lbf @ 80 psi, 675 lbf @ 60 psi
