Shop MILLENNIUM

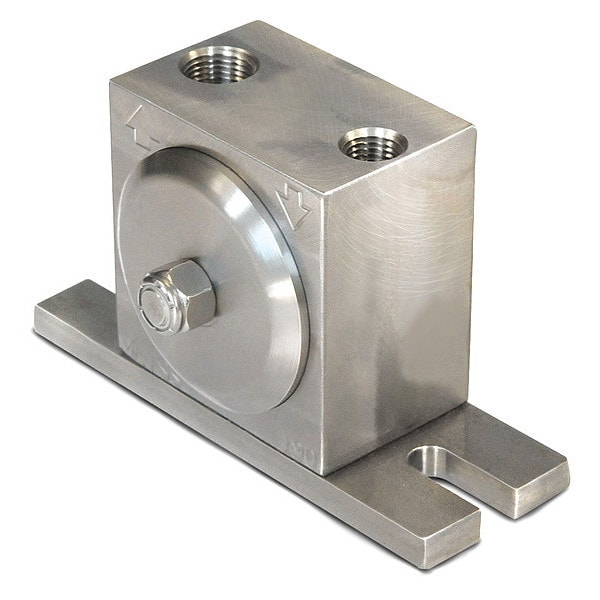

Silent Turbine Vibrator, 300 lb.

  • Mfr # MHISS-130

  • Zoro # G7863247

product price:
$
439.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
300 lb
CFM @ 80 PSI
5.5
Speed @ 60 psi
17,200 VPM
Overall Length
3-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MHISS-130
Zoro #
G7863247
UPC #
-
Country of Origin
United States
Item
Pneumatic Vibrator
Vibrator Type
Turbine
Force Rating
300 lb
CFM @ 80 PSI
5.5
Speed @ 60 psi
17,200 VPM
Speed @ 80 psi
21,000 VPM
dB @ 60 psi
68
dB @ 80 psi
68
Inlet Port
1/8" NPT
Outlet Port
1/4" NPT
Mounting Plate
No
CFM @ 60 psi
4.5
Muffler
Optional
Duty
Continuous
Max. Pressure
80 max.
Mounting
Channel Iron and Mounting Plate Recommended
Housing Material
Stainless steel
Application
Beverage, Chemical, Food, Pharmaceutical Industries
Standards
OSHA
Duty Cycle
Continuous
Mount Plate Required
No
Force @ 60 psi
200 lbf
Vibration Speeds @ PSI
17,200 vpm @ 60 psi, 21,000 vpm @ 80 psi
Vibration Speed @ 80 psi
21,000 vpm
Series
MHISS
Maximum Force
300 lbf
Weight
2 lb
Mount Type
Channel Iron and Mounting Plate Recommended
Inlet Connection Type
NPT
Sound Level
68 dBA
Air Flow Rate
4.5 cfm @ 60 psi, 5.5 cfm @ 80 psi
Force @ 80 psi
300 lbf
Maximum Bin Weight Capacity
3,000 lb
Vibration Speed @ 60 psi
17,200 vpm
Maximum Vibration Speed
17,200 vpm
Outlet Connection Type
NPT
Pneumatic Vibrator Type
Turbine
Force @ PSI
200 lbf @ 60 psi, 300 lbf @ 80 psi

Description

Pneumatic Vibrator, Housing Material Stainless Steel, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Air Flow Rate 4.5 cfm @ 60 psi, 5.5 cfm @ 80 psi, Maximum Force 300 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 17,200 vpm, Maximum Bin Weight Capacity 3,000 lb, Overall Height 2.52 in, Overall Length 3.5 in, Overall Width 1.89 in, Sound Level 68 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
