Shop MILLENNIUM

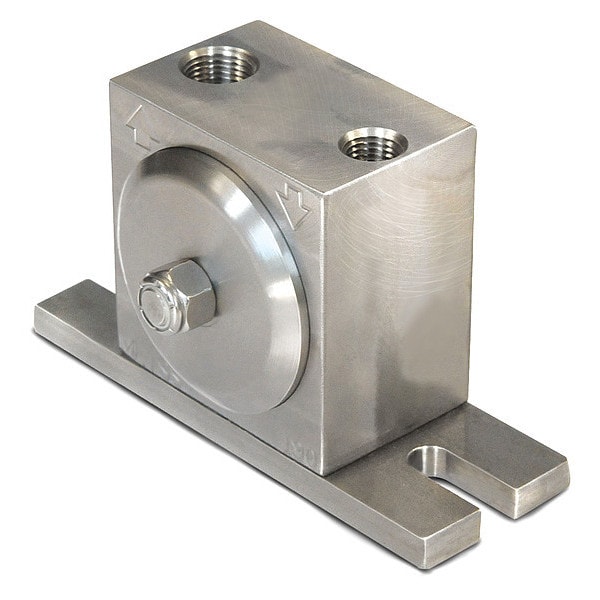

Silent Turbine Vibrator, 575 lb.

  • Mfr # MHISS-190

  • Zoro # G7820032

product price:  $489.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
575 lb
CFM @ 80 PSI
8.5
Speed @ 60 psi
8000 VPM
Speed @ 80 psi
10,500 VPM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MHISS-190
Zoro #
G7820032
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
4-1/2"
Overall Width
3-3/8"
Overall Height
3-1/16"
Inlet Connection Size
1/4 in
Outlet Connection Size
3/8 in
Mount Hole Size
10
Mount Hole Center-to-Center Length
89 mm
Wire Rope Length
4.49 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Turbine
Force Rating
575 lb
CFM @ 80 PSI
8.5
Speed @ 60 psi
8000 VPM
Speed @ 80 psi
10,500 VPM
dB @ 60 psi
71
dB @ 80 psi
71
Inlet Port
1/4" NPT
Outlet Port
3/8" NPT
CFM @ 60 psi
7.5
Mounting
Channel Iron and Mounting Plate Recommended
Application
Beverage, Chemical, Food, Pharmaceutical Industries
Max. Pressure
80 max.
Muffler
Optional
Mounting Plate
No
Housing Material
Stainless steel
Duty
Continuous
Standards
OSHA
Mount Plate Required
No
Series
MHISS
Maximum Bin Weight Capacity
5,750 lb
Air Flow Rate
7.5 cfm @ 60 psi, 8.5 cfm @ 80 psi
Maximum Force
575 lbf
Pneumatic Vibrator Type
Turbine
Force @ 60 psi
335 lbf
Outlet Connection Type
NPT
Force @ 80 psi
575 lbf
Inlet Connection Type
NPT
Vibration Speeds @ PSI
10,500 vpm @ 80 psi, 8,000 vpm @ 60 psi
Force @ PSI
335 lbf @ 60 psi, 575 lbf @ 80 psi
Weight
7 lb
Duty Cycle
Continuous
Maximum Vibration Speed
10,500 vpm
Mount Type
Channel Iron and Mounting Plate Recommended
Vibration Speed @ 80 psi
10,500 vpm
Vibration Speed @ 60 psi
8,000 vpm
Sound Level
71 dBA

Description

Pneumatic Vibrator, Housing Material Stainless Steel, Outlet Connection Size 3/8 in, Outlet Connection Type NPT, Air Flow Rate 7.5 cfm @ 60 psi, 8.5 cfm @ 80 psi, Maximum Force 575 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 10,500 vpm, Maximum Bin Weight Capacity 5,750 lb, Overall Height 3.19 in, Overall Length 4.49 in, Overall Width 3.39 in, Sound Level 71 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
