  11. Silent Turbine Vibrator, 75 lb.

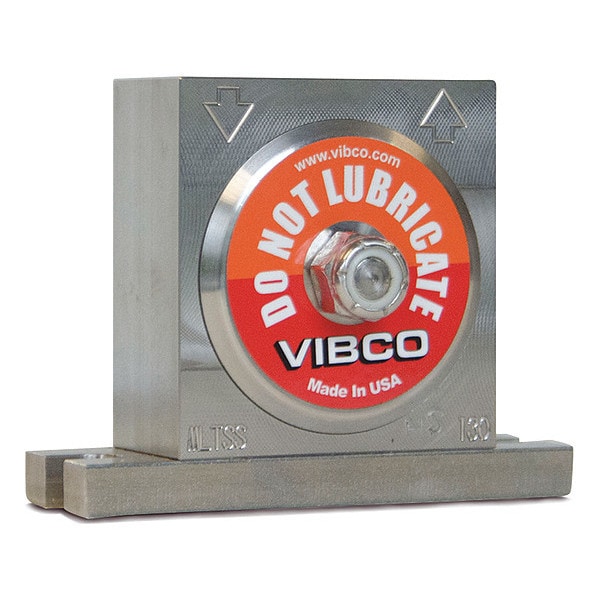

Millennium Silent Turbine Vibrator, 75 lb. MLTSS-130 - main

Silent Turbine Vibrator, 75 lb.

  • Mfr # MLTSS-130

  • Zoro # G7898676

product price: $484.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
75 lb
CFM @ 80 PSI
5.5
Speed @ 60 psi
8600 VPM
Speed @ 80 psi
10,500 VPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MLTSS-130
Zoro #
G7898676
UPC #
817457020440
Country of Origin
United States

Dimensions

Overall Length
3-1/2"
Overall Width
1-7/8"
Overall Height
2-9/16"
Outlet Connection Size
1/4 in
Mount Hole Center-to-Center Length
70 mm
Mount Hole Size
6
Inlet Connection Size
1/8 in

Details

Vibrator Type
Turbine
Item
Pneumatic Vibrator
Force Rating
75 lb
CFM @ 80 PSI
5.5
Speed @ 60 psi
8600 VPM
Speed @ 80 psi
10,500 VPM
dB @ 60 psi
68
dB @ 80 psi
68
Bin Weight Capacity
750 lb
Inlet Port
1/8" NPT
Outlet Port
1/4" NPT
Housing Material
Stainless steel
Application
Chemical, Food, Beverage, and Pharmaceutical Industries
Duty
Continuous
Mounting
Channel Iron and Mounting Plate Recommended
CFM @ 60 psi
4.5
Muffler
Optional
Mounting Plate
No
Max. Pressure
80 max.
Standards
OSHA
Inlet Connection Type
NPT
Maximum Vibration Speed
10,500 vpm
Air Flow Rate
4.5 cfm @ 60 psi, 5.5 cfm @ 80 psi
Series
MLTSS
Maximum Bin Weight Capacity
750 lb
Vibration Speed @ 80 psi
10,500 vpm
Mount Type
Channel Iron and Mounting Plate Recommended
Force @ PSI
50 lbf @ 60 psi, 75 lbf @ 80 psi
Vibration Speeds @ PSI
10,500 vpm @ 80 psi, 7,500 vpm @ 60 psi
Force @ 60 psi
50 lbf
Outlet Connection Type
NPT
Pneumatic Vibrator Type
Turbine
Duty Cycle
Continuous
Maximum Force
75 lbf
Mount Plate Required
No
Vibration Speed @ 60 psi
8,600 vpm
Sound Level
68 dBA
Weight
2 lb
Force @ 80 psi
75 lbf

Description

Pneumatic Vibrator, Housing Material Stainless Steel, Outlet Connection Size 1/4 in, Outlet Connection Type NPT, Air Flow Rate 4.5 cfm @ 60 psi, 5.5 cfm @ 80 psi, Maximum Force 75 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 10,500 vpm, Maximum Bin Weight Capacity 750 lb, Overall Height 2.52 in, Overall Length 3.5 in, Overall Width 1.89 in, Sound Level 68 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
