Shop MILLER ELECTRIC

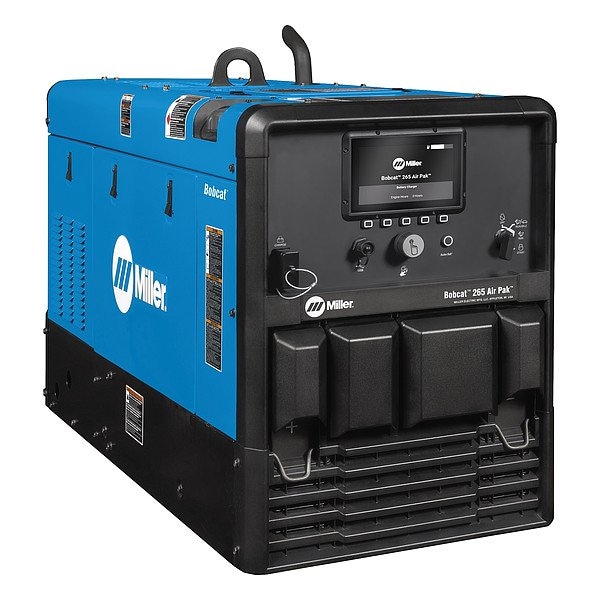

Eng-DrvWelder, Bobcat265AirPak, Kohler

  • Mfr # 907876

  • Zoro # G911631826

product price:
$
21,263.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Weight
570 lb
Includes
Battery Charge, Crank Assist
Color
Black, Blue
Depth
51.88 in
Width
20.46 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907876
Zoro #
G911631826
UPC #
715959710053
Country of Origin
United States

Dimensions

Depth
51.88 in
Width
20.46 in
Height
31 in
Overall Width
20.46 in
For Stainless Steel Thickness - Maximum
46,024 in
For Aluminum Thickness - Maximum
46,024 in
For Aluminum Thickness - Minimum
18 ga
Overall Height
31 in
For Steel Thickness - Maximum
46,024 in
For Steel Thickness - Minimum
18 ga
Overall Depth
51.88 in
For Stainless Steel Thickness - Minimum
22 ga

Details

Item
Engine-Driven Welder
Weight
570 lb
Includes
Battery Charge, Crank Assist
Color
Black, Blue
Phase
Single
Standards
cCSAus
Series
Bobcat 265 Air Pak
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding DC (GTAW-DC)
Application
Aluminum Welding, Fabrication, Field Welding, Industrial Welding
Engine Brand
Kohler
MIG Welding Maximum Output Current
260 A
TIG Welding Minimum Output Current
20 A
Generator Fuel Type
Gasoline
Peak Auxiliary Power
11,000 W
Air Compressor Delivery
28 CFM @ 3000 RPM, 30 CFM @ 3600 RPM
Stick Welding Maximum Output Current
265 A
TIG Arc Start Feature
Lift Arc Start
TIG Welding Output @ Duty Cycle
244 A @ 29.8 V, 100%
Horsepower
27 hp
Welding Mode
CC/CV
Sound Level
69.5 dB @ 150 A, 75.3 dB @ Max Weld
Polarity
DC
Circuit Breaker
Yes
Oil Capacity
1 3/4 qt
Stick Welding Minimum Output Current
20 A
Fuel Tank Capacity
11 gal
For Material Type
Aluminum, Stainless Steel, Steel
Maximum Pressure - Air Compressor
160 psig
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG (GMAW), Stick (SMAW), TIG DC (GTAW-DC)
Engine Model
Kohler CH749
Continuous Auxiliary Power
9,500 W
TIG Welding Maximum Output Current
265 A
MIG Welding Minimum Output Current
20 A
Model
Bobcat(TM) 265 Air Pak(TM)
Open Circuit Voltage
107 V DC
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R, 50 A 240V 6-50R
Start Type
Electric
Coolant Tank Capacity
11 gal
Stick Welding Output @ Duty Cycle
244 A @ 29.8 V, 100%
Engine Displacement
747 cc
MIG Welding Output @ Duty Cycle
260 A @ 27 V, 100%
Remote Connection Type
10-Pin (Miller)
Amperage Stick - Minimum
20 A
Amperage TIG - Maximum
265 A
Air Compressor Maximum Pressure
160 psig
Rated Output @ Duty Cycle (TIG)
244 A @ 29.8 V, 100%
Amperage MIG - Maximum
260 A
Amperage Stick - Maximum
265 A
Amperage MIG - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
260 A @ 27 V, 100%
Amperage TIG - Minimum
20 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), DC TIG Welding (GTAW-DC)
Welding Power Source Type
CC/CV
Rated Output @ Duty Cycle (Stick)
244 A @ 29.8 V, 100%

Description

Engine-Driven Welder, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 260 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 260 A @ 27 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 265 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 244 A @ 29.8 V, 100 Percent
