Shop MILLER ELECTRIC

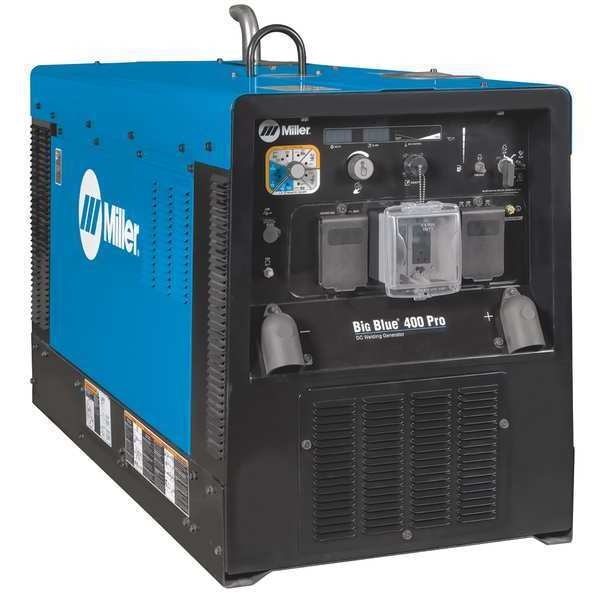

Engine-Driven Welder, Big Blue 400 Pro Series, Electric Start, 20.2 hp, Diesel, 12,000 W Peak

  • Mfr # 907732

  • Zoro # G1613993

product price:
$
32,327.99
/ea
Additional $500.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Series
Big Blue 400 Pro
Start Type
Electric
Rated Output CC/DC
300A @ 32V, 100% / 325A @ 28V, 100%
Amperage Range
20 to 400
Continuous Auxiliary Power
10,000 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907732
Zoro #
G1613993
UPC #
715959649476
Country of Origin
United States

Dimensions

Height
32 in
Depth
56 in
Width
26 1/4 in
Overall Height
32 in
Overall Width
26.25 in
Overall Depth
56 in
For Stainless Steel Thickness - Maximum
46,097 in
For Steel Thickness - Minimum
24 ga
For Aluminum Thickness - Minimum
24 ga
For Stainless Steel Thickness - Minimum
26 ga
For Steel Thickness - Maximum
46,097 in
For Aluminum Thickness - Maximum
46,097 in

Details

Item
Engine-Driven Welder
Series
Big Blue 400 Pro
Start Type
Electric
Rated Output CC/DC
300A @ 32V, 100% / 325A @ 28V, 100%
Amperage Range
20 to 400
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
HP
20.2 hp
Fuel Type
Diesel
Phase
Three
Application
Construction, Fabrication, Infrastructure, Maintenance/Repair
Standards
CSA Certified
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Circuit Breaker
Yes
Remote Connection Type
14-Pin (Miller)
Open Circuit Voltage
85 V DC
Horsepower
20 hp
Engine Model
Kubota V1505
For Material Type
Stainless Steel, Steel
Fuel Tank Capacity
11.5 gal
Enhanced Process
Pulsed MIG (GMAW-P), RMD
TIG Welding Minimum Output Current
20 A
Stick Welding Minimum Output Current
20 A
TIG Welding Output @ Duty Cycle
300 A @ 32 V,100%, 350 A @ 27 V, 100%, 400 A @ 24 V,100%
Color
Blue
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Sound Level
68.7 dB @ 23 ft, 71.6 dB @ 23 ft (Weld)
MIG Welding Maximum Output Current
400 A
Weight
950 lb
Generator Fuel Type
Diesel
Polarity
DC
Stick Welding Output @ Duty Cycle
300 A @ 32 V,100%, 350 A @ 27 V, 100%, 400 A @ 24 V,100%
Stick Welding Maximum Output Current
400 A
Oil Capacity
6 qt
Welding Mode
CC
MIG Welding Output @ Duty Cycle
300 A @ 32 V,100%, 350 A @ 27 V, 100%, 400 A @ 24 V,100%
TIG Welding Maximum Output Current
400 A
Coolant Tank Capacity
6 qt
Model
907732
Rated Output @ Duty Cycle (Stick)
300 A @ 32 V,100%, 350 A @ 27V, 100%, 400 A @ 24 V,100%
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Amperage MIG - Minimum
60 A
Rated Output @ Duty Cycle (TIG)
300 A @ 32 V,100%, 350 A @ 27 V, 100%, 400 A @ 24 V,100%
Amperage TIG - Maximum
400 A
Amperage TIG - Minimum
20 A
Amperage MIG - Maximum
400 A
Includes
ArcReach Remote Control Technology
Amperage Stick - Maximum
400 A
Amperage Stick - Minimum
20 A
Rated Output @ Duty Cycle (MIG)
300 A @ 32 V,100%, 350 A @ 27 V, 100%, 400 A @ 24 V,100%
Welding Power Source Type
CC

Description

Engine-Driven Welder, Color Blue, For Material Type Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 400 A, MIG Welding Output @ Duty Cycle 300 A @ 32 V,100 Percent, 350 A @ 27 V, 100 Percent, 400 A @ 24 V,100 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 20 A
