  9. Engine-Driven Welder, Big Blue(R) 400 PipePro(R) Series, Electric Start, 24.7 hp, Diesel

This item is Discontinued.

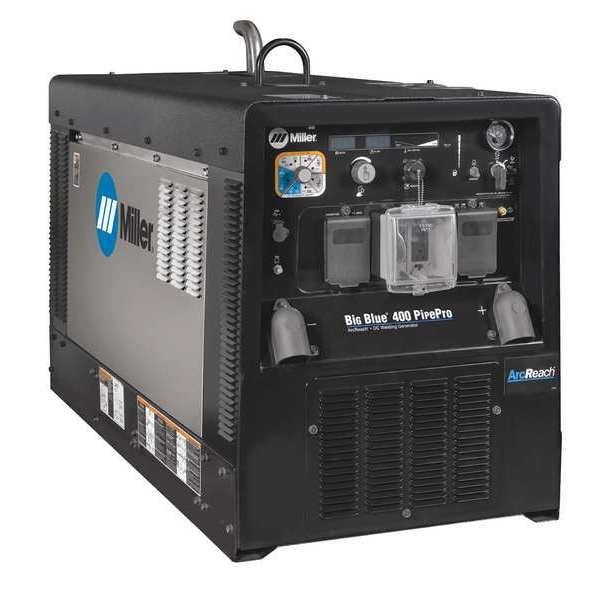

Miller Electric Engine-Driven Welder, Big Blue(R) 400 PipePro(R) Series, Electric Start, 24.7 hp, Diesel 907703

Engine-Driven Welder, Big Blue(R) 400 PipePro(R) Series, Electric Start, 24.7 hp, Diesel (Discontinued)

  • Mfr # 907703
  • Zoro # G1614063
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907703
Zoro #
G1614063
UPC #
715959649537
Country of Origin
United States

Dimensions

Depth
56 in
Width
26 1/4 in
Height
32 in
Overall Height
32 in
Overall Width
26.25 in
Overall Depth
56 in

Details

Item
Engine-Driven Welder
Series
Big Blue 400 Pipe Pro
Start Type
Electric
Rated Output CC/DC
300A @ 32V, 100% / 325A @ 28V, 100%
Amperage Range
20 to 400
Continuous Auxiliary Power
10,000 W
Peak Auxiliary Power
12,000 W
Engine Brand
Mitsubishi
HP
24.7 hp
Fuel Type
Diesel
Includes
ArcReach Remote Control Technology
Phase
Three-Phase
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Generator Fuel Type
Diesel
Weight
993 lb
Stick Welding Output @ Duty Cycle
300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Stick Welding Minimum Output Current
20 A
Polarity
DC
Max. Amperage Range (Stick)
Greater than 300 A
Welder Type
Base Model
Horsepower Range
15 hp - 30 hp
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Horsepower
25 hp
TIG Welding Output @ Duty Cycle
300 A @ 32 V, 100%, 350 A @ 27 V, 100%, 400 A @ 24 V, 100%
Stick Welding Maximum Output Current
400 A
TIG Welding Minimum Output Current
20 A
Welding Mode
CC
Generator Outlet Type
14-50R, 5-20R
TIG Welding Maximum Output Current
400 A
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
MIG Welding Maximum Output Current
400 A
MIG Welding Minimum Output Current
20 A
Rated Output at Duty Cycle (Stick)
300 A @ 100%
MIG Welding Output @ Duty Cycle
300A @ 32V, 100%, 325A @ 28V, 100%
Model
907703
Welder Model Type
Base Model
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG DC Welding (GTAW-DC), TIG Welding (GTAW)
brand-mfr model
MILLER ELECTRIC - 907703

Description

Engine-Driven Welder, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 400 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 300A @ 32V, 100 Percent, 325A @ 28V, 100 Percent, Phase Three-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 400 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 300 A @ 32 V, 100 Percent, 350 A @ 27 V, 100 Percent, 400 A @ 24 V, 100 Percent
