This item is Discontinued.

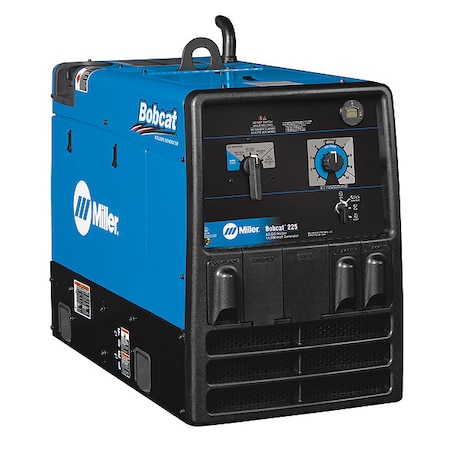

Miller Electric Engine-Driven Welder, Bobcat 225, Phase Single-Phase 907791001

Engine-Driven Welder, Bobcat 225, Phase Single-Phase (Discontinued)

  • Mfr # 907791001
  • Zoro # G0191688
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907791001
Zoro #
G0191688
UPC #
715959681469
Country of Origin
United States

Dimensions

Width
20 in
Depth
40 1/2 in
Height
32 3/4 in
Overall Width
20 in
Overall Depth
40.5 in
Overall Height
32.75 in

Details

Item
Engine-Driven Welder
Series
Bobcat 225
Phase
Single-Phase
Standards
CSA Certified
Start Type
Electric
Rated Output CC/DC
225A @ 25V, 100%
Fuel Type
Gas
Continuous Auxiliary Power
9,500 W
Peak Auxiliary Power
11,000 W
HP
23.5 hp
Application
Fabrication, Farm, Maintenance, Repair, Work Trucks
Includes
Remote
Amperage Range
40 to 225
Rated Output CC/AC
150A @ 25 V, 100% Duty Cycle
Welding Processes
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Engine Brand
Kohler
Welder Type
Base Model
Engine Model
Kohler CH730
TIG Welding Output @ Duty Cycle
150 A @ 25 V, 100%, 225 A @ 25 V, 100%
For Material Type
Aluminum, Stainless Steel, Steel
Polarity
AC/DC
Color
Blue
Generator Fuel Type
Gasoline
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Max. Amperage Range (Stick)
150 A - 300 A
Stick Welding Minimum Output Current
40 A (DC), 60 A (AC)
Fuel Tank Capacity
12 gal
TIG Welding Minimum Output Current
40 A (DC), 60 A (AC)
Stick Welding Maximum Output Current
160 A (AC), 225 A (DC)
Weight
485 lb
Stick Welding Output @ Duty Cycle
150 A @ 25 V, 100%, 225 A @ 25 V, 100%
Horsepower
24 hp
Fuel Tank Capacity Range
10 gal - 20 gal
Circuit Breaker
Yes
Rated Output at Duty Cycle (Stick)
150 A @ 100%, 225 A @ 100%
Welding Mode
CC/CV
Oil Capacity
1 1/2 qt
MIG Welding Output @ Duty Cycle
200 A @ 20 V, 100%
Horsepower Range
15 hp - 30 hp
Sound Level
73.5 dB
Generator Outlet Type
14-50R, 5-20R
TIG Welding Maximum Output Current
160 A (AC), 225 A (DC)
Model
907791001
brand-mfr model
MILLER ELECTRIC - 907791001
Welder Model Type
Base Model
Process
Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Output @ Duty Cycle 200 A @ 20 V, 100 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 160 A (AC), 225 A (DC), Stick Welding Minimum Output Current 40 A (DC), 60 A (AC), Stick Welding Output @ Duty Cycle 150 A @ 25 V, 100 Percent, 225 A @ 25 V, 100 Percent, TIG Welding Maximum Output Current 160 A (AC), 225 A (DC)
