This item is Discontinued.

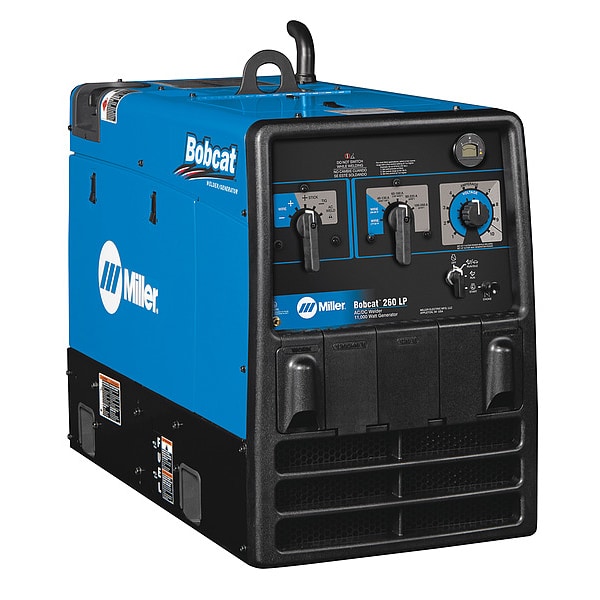

Miller Electric Engine Driven Welder, Electric, 40 to 260A, HP: 21 hp 907794

Engine Driven Welder, Electric, 40 to 260A, HP: 21 hp (Discontinued)

  • Mfr # 907794
  • Zoro # G8360302
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907794
Zoro #
G8360302
UPC #
715959681506
Country of Origin
United States

Dimensions

Width
20 in
Height
32 3/4 in
Depth
40 1/2 in
Overall Width
20 in
Overall Depth
40.5 in
Overall Height
32.75 in

Details

Item
Engine-Driven Welder
Series
Bobcat 260 LP
Standards
CSA Certified
Includes
GFCI Receptacle
Phase
Single-Phase
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Rated Output CC/DC
260A @ 25V, 100% Duty Cycle
Amperage Range
40 to 260
Rated Output CC/AC
225A @ 25 V, 100% Duty Cycle
Start Type
Electric
Application
Fabrication, Farm, Maintenance, Ranch, Repair, Structural Steel Work, Stand-Alone Generator, Work Truck
Polarity
AC/DC
Engine Brand
Kohler
HP
21 hp
Continuous Auxiliary Power
9,500 W
Peak Auxiliary Power
11,000 W
Fuel Type
Liquid Propane
Stick Welding Minimum Output Current
40 A
Welder Type
with GFCI Receptacles
Fuel Tank Capacity Range
10 gal - 20 gal
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Engine Model
Kohler CH730
Oil Capacity
1 1/2 qt
For Material Type
Aluminum, Stainless Steel, Steel
Welding Mode
CC/CV
TIG Welding Minimum Output Current
40 A
Weight
501 lb
Stick Welding Output @ Duty Cycle
225 A @ 25 V, 100%, 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60%
Max. Amperage Range (Stick)
150 A - 300 A
Generator Outlet Type
14-50R, 5-20R
Horsepower
21 hp
Stick Welding Maximum Output Current
260 A
Circuit Breaker
Yes
Rated Output at Duty Cycle (Stick)
225 A @ 100%, 260 A @ 100%, 260 A @ 60%
MIG Welding Output @ Duty Cycle
260 A @ 28 V, 100%, 275 A @ 25 V, 60%
TIG Welding Output @ Duty Cycle
225 A @ 25 V, 100%, 260 A @ 25 V, 100% (DC), 260 A @ 25 V, 60%
Generator Fuel Type
Liquid Propane
Color
Blue
Fuel Tank Capacity
12 gal
Sound Level
72.5 dB
TIG Welding Maximum Output Current
260 A
Horsepower Range
15 hp - 30 hp
Model
907794
Welder Model Type
with GFCI Receptacles
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
MILLER ELECTRIC - 907794

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Liquid Propane, MIG Welding Output @ Duty Cycle 260 A @ 28 V, 100 Percent, 275 A @ 25 V, 60 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 260 A, Stick Welding Minimum Output Current 40 A, Stick Welding Output @ Duty Cycle 225 A @ 25 V, 100 Percent, 260 A @ 25 V, 100 Percent (DC), 260 A @ 25 V, 60 Percent
