This item is Discontinued.

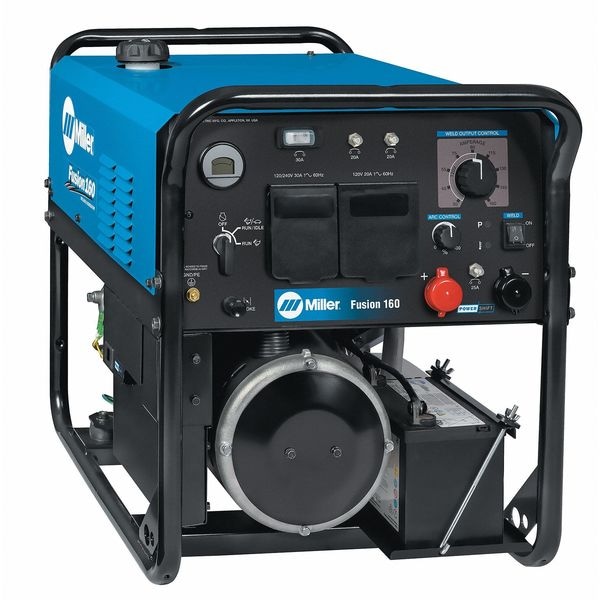

Miller Electric Engine Driven Welder, Fusion 160, Phase 1 907773

Engine Driven Welder, Fusion 160, Phase 1 (Discontinued)

  • Mfr # 907773
  • Zoro # G3006092
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907773
Zoro #
G3006092
UPC #
715959659208
Country of Origin
United States

Dimensions

Height
24 3/4 in
Depth
31 1/4 in
Width
20 7/64 in
Overall Depth
31.25 in
Overall Width
20.11 in
Overall Height
24.75 in

Details

Item
Engine-Driven Welder
Series
Fusion 160
Phase
Single-Phase
HP
13.4 hp
Continuous Auxiliary Power
6,200 W
Rated Output CC/DC
160A @ 26.4V, 20% Duty Cycle
Includes
GFCI Receptacles
Engine Brand
Kohler
Fuel Type
Gas
Amperage Range
30 to 160
Peak Auxiliary Power
6,500 W
Start Type
Electric
Welding Processes
Stick Welding (SMAW)
Standards
CSA Certified
Application
Construction, Farm, Maintenance, Ranch, Repair, Service Truck
MIG Welding Maximum Output Current
160 A
Fuel Tank Capacity
6.3 gal
Horsepower Range
Less than 15 hp
Welding Mode
CC
Horsepower
13.4 hp
Welder Type
with GFCI Receptacles
Color
Blue
Circuit Breaker
Yes
Weight
242 lb
Generator Outlets
20 A 120V GFCI 5-20R (4), 30 A 120/240V L14-30R
Engine Model
Kohler CH440
Generator Outlet Type
5-20R, L14-30R
Stick Welding Maximum Output Current
160 A
Stick Welding Output @ Duty Cycle
110 A @ 24.4 V, 100%, 110 A @ 24.4 V, 100% (Power Shift 240 V), 160 A @ 26.4 V, 20%, 160 A @ 26.4 V, 20% (Power Shift 240 V), 90 A @ 23.6 V, 40% (Power Shift 120 V)
Rated Output at Duty Cycle (Stick)
110 A @ 100%, 160 A @ 20%, 90 A @ 40%
Polarity
DC
Fuel Tank Capacity Range
Less than 10 gal
Max. Amperage Range (Stick)
150 A - 300 A
Oil Capacity
1 3/8 qt
MIG Welding Minimum Output Current
30 A
Generator Fuel Type
Gasoline
TIG Arc Start Feature
Lift Arc Start
Stick Welding Minimum Output Current
30 A
Model
907773
brand-mfr model
MILLER ELECTRIC - 907773
Welder Model Type
with GFCI Receptacles
Process
Stick Welding (SMAW)

Description

Engine-Driven Welder, Color Blue, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 160 A, MIG Welding Minimum Output Current 30 A, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 160 A, Stick Welding Minimum Output Current 30 A

Restrictions

Hazardous material
