  9. Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak
No Product Image Available

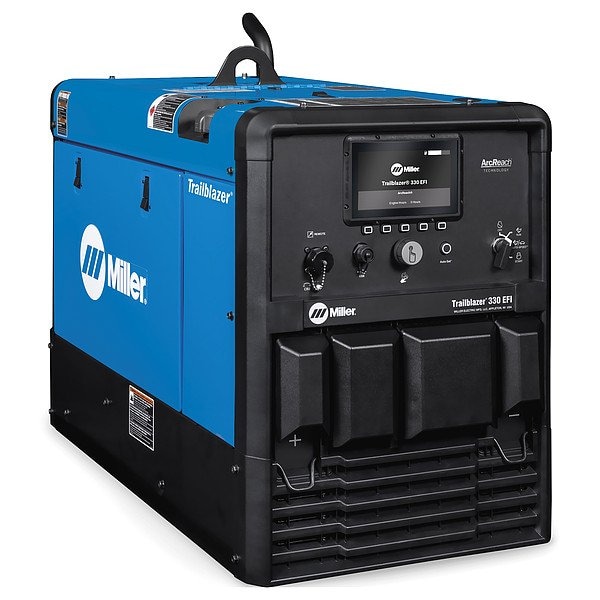

Engine-Driven Welder Generator, Trailblazer 330 Series, Electric Start, 12,000 W Peak

  • Mfr # 907832002

  • Zoro # G210607386

product price: $16,114.99
/ea
Item requires special delivery charges. A $260.00 per item surcharge will be applied.

Key Features

Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907832002
Zoro #
G210607386
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
26.5 in
Overall Depth
37.06 in
Overall Width
20.13 in

Details

Item
Engine-Driven Welder Generator
Series
Trailblazer 330
Start Type
Electric
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
Phase
Single-Phase
Standards
CSA
Includes
10-Pin (Direct Connect for Spoolgun), 14-pin Recptacle, Advanced Auto-speed, Advanced Weld controls (Dynamic Dig, Pulse TIG, Inductance), ArcReach, Autoset, Electronic Fuel injection (EFI), Excel power, Full Process Selection, LCD Display, USB Port, Wireless Interface control (WIC)
Welding Processes
Flux-Cored (FCAW), MIG (GMAW), Stick (SMAW)
Model
Trailblazer 330
Engine Model
Kohler ECH730
Horsepower
23 hp
Stick Welding Output @ Duty Cycle
330 A @ 30 V,100%
For Material Type
Aluminum, Stainless Steel, Steel
Stick Welding Maximum Output Current
330 A
MIG Welding Output @ Duty Cycle
330 A @ 30 V,100%
TIG Welding Output @ Duty Cycle
330 A @ 30 V,100%
MIG Welding Maximum Output Current
330 A
Engine Displacement
44 cu in
Generator Fuel Type
Gasoline
Fuel Tank Capacity
11 gal
Oil Capacity
1 1/2 qt
Stick Welding Minimum Output Current
20 A
Sound Level
150 A load: 65 dB @ 23 ft (Weld), 330 A load:73.5 dB @ 23 ft (Weld), 73.5 dB @ 23 ft (Auxiliary power), Excel power: 65 dB @ 23 ft (Auxiliary power)
TIG Welding Minimum Output Current
20 A
Weight
400 lb
Generator Outlets
GFCI 120 V (2) Excel Power (120V @2400watts), NEMA 14-50R 120/240V AC, NEMA 6-50R 240V AC
Color
Black, Blue
Open Circuit Voltage
107 V DC
Circuit Breaker
Yes
MIG Welding Minimum Output Current
20 A
Polarity
DC
TIG Welding Maximum Output Current
330 A
Welding Mode
CC/CV
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Pulsed TIG (GTAW-P), TIG DC Welding (GTAW-DC)

Description

Engine-Driven Welder Generator, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30 V,100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 30 V,100 Percent
