Shop MILLER ELECTRIC

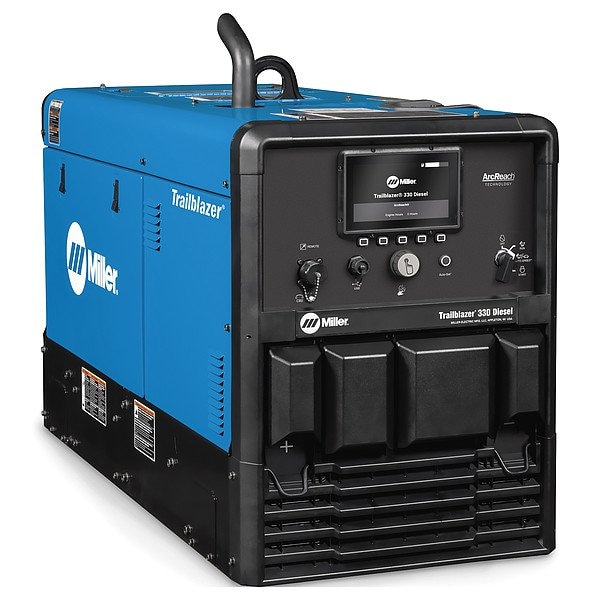

Diesel Engine-Driven Welder, Trailblazer(R) Series, Glow Plug Start, 12,000 W Peak

  • Mfr # 907849001

  • Zoro # G210901750

product price:  $26,195.99
/ea
Additional $310.00 delivery surcharge applies per item.
See details

Key Features

Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
907849001
Zoro #
G210901750
UPC #
715959707985
Country of Origin
United States

Dimensions

Overall Width
20.6 in
Overall Height
27.02 in
Overall Depth
45.72 in
For Stainless Steel Thickness - Minimum
22 ga
For Steel Thickness - Minimum
18 ga
For Aluminum Thickness - Maximum
46,024 in
For Aluminum Thickness - Minimum
18 ga
For Steel Thickness - Maximum
46,024 in
For Stainless Steel Thickness - Maximum
46,024 in

Details

Item
Diesel Engine-Driven Welder
Series
Trailblazer(R)
Start Type
Glow Plug
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kubota
Welding Processes
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase
Single
Application
Aluminum Welding, Fabrication, Field Welding, Industrial Welding, Mobile Fabrication and MRO, Structural Welding
Standards
cCSAus
Includes
10-pin direct connect spoolgunExcel Power
Welding Mode
CC/CV
Enhanced Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux Cored (FCAW), MIG (GMAW), Pulsed TIG (GTAW-P), Stick (SMAW), TIG DC (GTAW-DC)
TIG Arc Start Feature
Lift Arc TIG
Stick Welding Minimum Output Current
20 A
TIG Welding Maximum Output Current
330 A
Circuit Breaker
Yes
Stick Welding Output @ Duty Cycle
330 A @ 31 V, 100%
Generator Fuel Type
Diesel
TIG Welding Minimum Output Current
20 A
Open Circuit Voltage
107 V DC
TIG Welding Output @ Duty Cycle
330 A @ 31 V, 100%
Horsepower
24.8 hp
Fuel Tank Capacity
11 gal
Weight
611 lb
MIG Welding Output @ Duty Cycle
330 A @ 30.5 V, 100%
Oil Capacity
3 7/8 qt
Engine Model
T4F
For Material Type
Aluminum, Stainless Steel, Steel
Sound Level
74.7 dB @ (Idle), 80.2 dB @ (Max Weld)
Stick Welding Maximum Output Current
330 A
MIG Welding Maximum Output Current
330 A
Engine Displacement
54.9 cu in
Remote Connection Type
10-Pin (Miller), 14-Pin (Lincoln)
MIG Welding Minimum Output Current
20 A
Model
Trailblazer(R) 330 Diesel
Generator Outlets
14-50R 120/240V AC KVA (1) Nema 6-50R (1), 5-20R 120V AC Duplex (2)
Color
Black, Blue
Polarity
DC
Coolant Tank Capacity
0.25 gal
Rated Output @ Duty Cycle (Stick)
330 A @ 31V, 100%
Amperage MIG - Maximum
330 A
Amperage MIG - Minimum
20 A
Amperage TIG - Minimum
20 A
Rated Output @ Duty Cycle (TIG)
330 A @ 31 V, 100%
Amperage Stick - Minimum
20 A
Amperage TIG - Maximum
330 A
Process
MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welding Power Source Type
CC/CV
Amperage Stick - Maximum
330 A
Rated Output @ Duty Cycle (MIG)
330 A @ 30.5 V, 100%

Description

Diesel Engine-Driven Welder, Color Black, Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Diesel, MIG Welding Maximum Output Current 330 A, MIG Welding Minimum Output Current 20 A, MIG Welding Output @ Duty Cycle 330 A @ 30.5 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Glow Plug, Stick Welding Maximum Output Current 330 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 330 A @ 31 V, 100 Percent
