  5. Engine Driven Welder, Trailblazer 302 Series, Electric Start, 30 hp, Gas, 13,000 W Peak

This item is Discontinued.

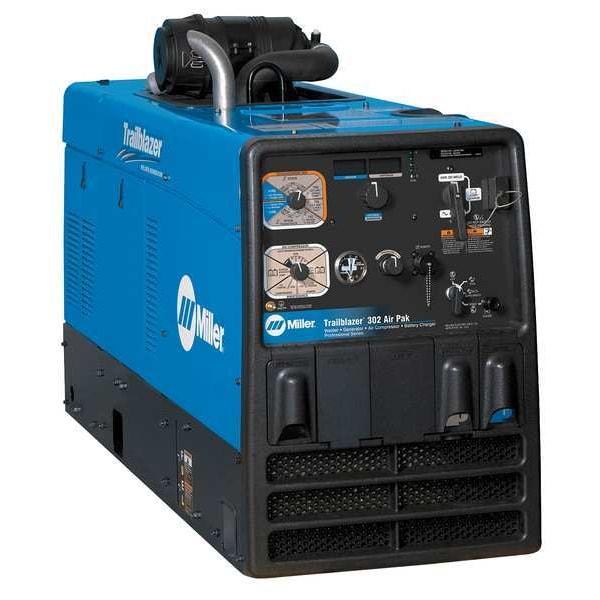

Miller Electric Engine Driven Welder, Trailblazer 302 Series, Electric Start, 30 hp, Gas, 13,000 W Peak 907549001

Engine Driven Welder, Trailblazer 302 Series, Electric Start, 30 hp, Gas, 13,000 W Peak (Discontinued)

  • Mfr # 907549001
  • Zoro # G2236930
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907549001
Zoro #
G2236930
UPC #
715959577625
Country of Origin
United States

Dimensions

Width
59 39/64 in
Depth
20 in
Height
28 in
Overall Depth
59.63 in
Overall Width
20 in
Overall Height
34.5 in

Details

Item
Engine-Driven Welder
Series
Trailblazer 302 Air Pak
Start Type
Electric
Rated Output CC/AC
200A @ 25V, 60%
Rated Output CC/DC
280A @ 32V, 100%
Amperage Range
10 to 350
Continuous Auxiliary Power
11,000 W
Peak Auxiliary Power
13,000 W
Engine Brand
Kohler
HP
30 hp
Fuel Type
Gas
Phase
Single-Phase
Includes
Air Compressor, Battery Charge/Jump Start.
Application
Construction, Farm, Infrastructure, Maintenance/Repair, Manufacturing, Mechanical Contracting, Ranch
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Standards
CSA Certified
Fuel Tank Capacity
12 gal
Max. Amperage Range (Stick)
150 A - 300 A
TIG Welding Minimum Output Current
10 A
Circuit Breaker
Yes
Horsepower Range
15 hp - 30 hp
Remote Connection Type
14-Pin (Miller)
Stick Welding Output @ Duty Cycle
200 A @ 25 V, 60%, 280 A @ 32 V, 100% (DC)
Maximum Pressure - Air Compressor
160 psig
Generator Fuel Type
Gasoline
TIG Welding Output @ Duty Cycle
200 A @ 25 V, 60%, 280 A @ 32 V, 100% (DC)
Rated Output at Duty Cycle (Stick)
200 A @ 60%, 280 A @ 100%
Welder Type
Base Model
Polarity
AC/DC
For Material Type
Aluminum, Stainless Steel, Steel
Horsepower
27 hp
MIG Welding Maximum Output Current
350 A
Weight
771 lb
Welding Mode
CC/CV
Color
Blue
Sound Level
73.4 dB (Idle), 81.2 dB (Weld)
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Engine Model
Kohler CH750
MIG Welding Output @ Duty Cycle
300 A @ 32 V, 100%, 350 A @ 32 V, 60%
Stick Welding Minimum Output Current
10 A
Air Compressor Delivery
22 CFM @ 2400 RPM (Idle), 28 CFM @ 3000 RPM, 31 CFM @ 3600 RPM
Stick Welding Maximum Output Current
300 A
TIG Welding Maximum Output Current
300 A
Fuel Tank Capacity Range
10 gal - 20 gal
Oil Capacity
1 3/4 qt
Generator Outlet Type
14-50R, 5-20R
Model
907549001
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Model Type
Base Model
brand-mfr model
MILLER ELECTRIC - 907549001

Description

Engine-Driven Welder, Color Blue, For Material Type Aluminum, Stainless Steel, Steel, Generator Fuel Type Gasoline, MIG Welding Maximum Output Current 350 A, MIG Welding Output @ Duty Cycle 300 A @ 32 V, 100 Percent, 350 A @ 32 V, 60 Percent, Phase Single-Phase, Polarity AC/DC, Start Type Electric, Stick Welding Maximum Output Current 300 A, Stick Welding Minimum Output Current 10 A, Stick Welding Output @ Duty Cycle 200 A @ 25 V, 60 Percent, 280 A @ 32 V, 100 Percent (DC)
