This item is Discontinued.

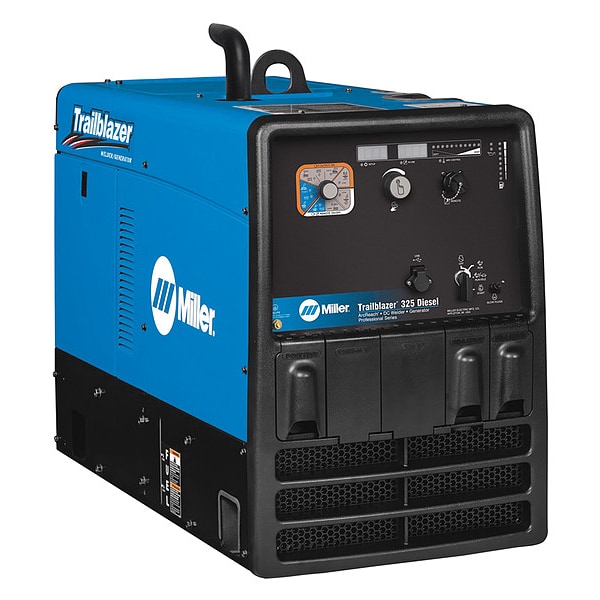

Miller Electric Engine Driven Welder, Trailblazer(R) 325, Phase 1 907799001

Engine Driven Welder, Trailblazer(R) 325, Phase 1 (Discontinued)

  • Mfr # 907799001
  • Zoro # G0193018
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907799001
Zoro #
G0193018
UPC #
715959678469
Country of Origin
United States

Dimensions

Depth
45 3/8 in
Width
20 in
Height
34 3/8 in
Overall Height
34.38 in
Overall Width
20 in
Overall Depth
45.38 in

Details

Item
Engine-Driven Welder
Series
Trailblazer 325 Diesel
Phase
Single-Phase
Amperage Range
10 to 325
Continuous Auxiliary Power
10,500 W
Engine Brand
Kubota
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Peak Auxiliary Power
12,000 W
Fuel Type
Diesel
Start Type
Electric
HP
24.8 hp
Application
Fabrication, Maintenance, Pipe, Repair, Sheet Metal, Structural Steel Work
Standards
CSA Certified
Includes
GFCI Receptacles
Rated Output CC/DC
325A @ 33V, 100%
Horsepower Range
15 hp - 30 hp
Generator Fuel Type
Diesel
Polarity
DC
Generator Outlet Type
14-50R, 5-20R
Fuel Tank Capacity Range
10 gal - 20 gal
Circuit Breaker
Yes
Welder Type
with GFCI Receptacles
TIG Welding Maximum Output Current
325 A
MIG Welding Output @ Duty Cycle
325 A @ 33 V, 100%
Stick Welding Output @ Duty Cycle
325 A @ 33 V, 100%
Fuel Tank Capacity
12 gal
For Material Type
Steel
Sound Level
70 dB (Idle), 81.5 dB (Weld)
Stick Welding Maximum Output Current
325 A
TIG Welding Minimum Output Current
20 A
Engine Model
Kubota D902
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Weight
620 lb
Welding Mode
CC/CV
Oil Capacity
3 7/8 qt
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Stick Welding Minimum Output Current
20 A
Color
Blue
Rated Output at Duty Cycle (Stick)
325 A @ 100%
Remote Connection Type
14-Pin (Miller)
Max. Amperage Range (Stick)
Greater than 300 A
TIG Welding Output @ Duty Cycle
325 A @ 33 V, 100%
Horsepower
25 hp
Model
907799001
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Model Type
with GFCI Receptacles
brand-mfr model
MILLER ELECTRIC - 907799001

Description

Engine-Driven Welder, Color Blue, For Material Type Steel, Generator Fuel Type Diesel, MIG Welding Output @ Duty Cycle 325 A @ 33 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 325 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 325 A @ 33 V, 100 Percent, TIG Welding Maximum Output Current 325 A, TIG Welding Minimum Output Current 20 A, TIG Welding Output @ Duty Cycle 325 A @ 33 V, 100 Percent
