  5. Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak

This item is Discontinued.

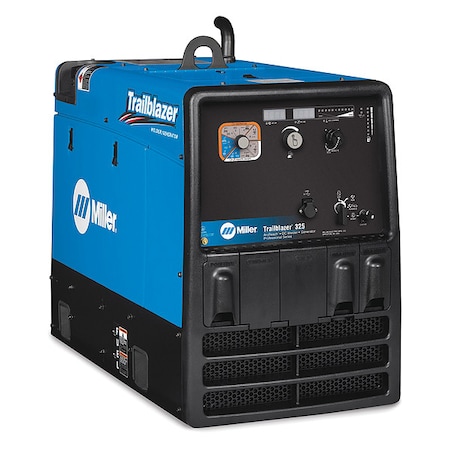

Miller Electric Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak 907797002

Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak (Discontinued)

  • Mfr # 907797002
  • Zoro # G0748459
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
907797002
Zoro #
G0748459
UPC #
715959678414
Country of Origin
United States

Dimensions

Depth
40 1/2 in
Overall Height
32.75 in
Height
32 3/4 in
Width
20 in
Overall Depth
40.5 in
Overall Width
20 in

Details

Item
Engine-Driven Welder
Series
Trailblazer 325
Start Type
Electric
Rated Output CC/DC
325A @ 28V, 100%
Amperage Range
10 to 325
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Standards
CSA Certified
Includes
Electric Fuel Pump
Application
Fabrication, Maintenance, Pipe, Repair, Sheet Metal, Structural Steel Work
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase
Single-Phase
Generator Outlet Type
14-50R, 5-20R
Fuel Tank Capacity
12 gal
Generator Fuel Type
Gasoline
Welding Mode
CC/CV
TIG Welding Maximum Output Current
325 A
Stick Welding Maximum Output Current
325 A
Horsepower Range
15 hp - 30 hp
Stick Welding Minimum Output Current
20 A
Oil Capacity
1 1/2 qt
MIG Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Sound Level
65 dB (150 A), 73.5 dB (325 A)
TIG Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Rated Output at Duty Cycle (Stick)
325 A @ 100%
Circuit Breaker
Yes
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
Weight
488 lb
Engine Model
Kohler CH730
Max. Amperage Range (Stick)
Greater than 300 A
Polarity
DC
TIG Welding Minimum Output Current
20 A
Fuel Tank Capacity Range
10 gal - 20 gal
Stick Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Welder Type
Electric Fuel Pump
Horsepower
24 hp
Model
907797002
brand-mfr model
MILLER ELECTRIC - 907797002
Welder Model Type
Electric Fuel Pump
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)

Description

Engine-Driven Welder, Generator Fuel Type Gasoline, MIG Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 325 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, TIG Welding Maximum Output Current 325 A, TIG Welding Minimum Output Current 20 A, TIG Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, Welding Mode CC/CV
