  5. Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak

This item is Discontinued.

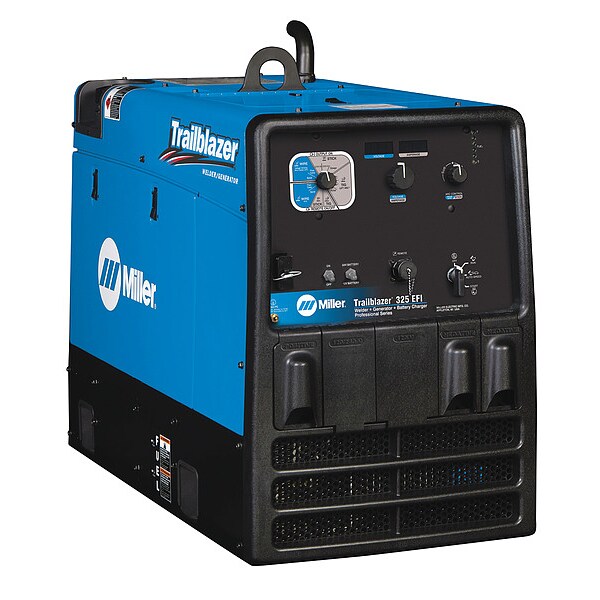

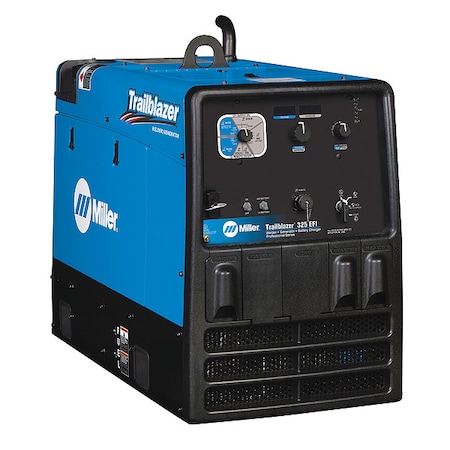

Miller Electric Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak 907798004

Engine Driven Welder, Trailblazer(R) 325 Series, Electric Start, 23 hp, Gas, 12,000 W Peak (Discontinued)

  • Mfr # 907798004
  • Zoro # G0748486
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
907798004
Zoro #
G0748486
UPC #
715959678445
Country of Origin
United States

Dimensions

Overall Width
20 in
Overall Height
32.75 in
Depth
40 1/2 in
Height
32 3/4 in
Width
20 in
Overall Depth
40.5 in

Details

Item
Engine-Driven Welder
Series
Trailblazer 325
Start Type
Electric
Rated Output CC/DC
325A @ 28V, 100%
Amperage Range
10 to 325
Continuous Auxiliary Power
10,500 W
Peak Auxiliary Power
12,000 W
Engine Brand
Kohler
HP
23 hp
Fuel Type
Gas
Includes
Battery Charge, Electronic Fuel Injection, Excel(TM) Power
Standards
CSA Certified
Application
Fabrication, Maintenance, Pipe, Sheet Metal, Structural Steel Work
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Phase
Single-Phase
Generator Fuel Type
Gasoline
Stick Welding Maximum Output Current
325 A
Rated Output at Duty Cycle (Stick)
325 A @ 100%
TIG Welding Minimum Output Current
20 A
Stick Welding Minimum Output Current
20 A
TIG Welding Maximum Output Current
325 A
Generator Outlets
20 A 120V GFCI 5-20R (4), 50 A 120/240V 14-50R
MIG Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Polarity
DC
Oil Capacity
1 1/2 qt
Fuel Tank Capacity
23.5 gal
Welding Mode
CC/CV
Fuel Tank Capacity Range
Greater than 20 gal
Engine Model
Kohler CH730
Circuit Breaker
Yes
Horsepower Range
15 hp - 30 hp
Max. Amperage Range (Stick)
Greater than 300 A
Generator Outlet Type
14-50R, 5-20R
Horsepower
24 hp
Weight
508 lb
Welder Type
Battery Charge, Excel Power
TIG Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Sound Level
73.5 dB @23 ft
Stick Welding Output @ Duty Cycle
325 A @ 28 V, 100%
Model
907798004
brand-mfr model
MILLER ELECTRIC - 907798004
Welder Model Type
Battery Charge, Excel Power
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)

Description

Engine-Driven Welder, Generator Fuel Type Gasoline, MIG Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, Phase Single-Phase, Polarity DC, Start Type Electric, Stick Welding Maximum Output Current 325 A, Stick Welding Minimum Output Current 20 A, Stick Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, TIG Welding Maximum Output Current 325 A, TIG Welding Minimum Output Current 20 A, TIG Welding Output @ Duty Cycle 325 A @ 28 V, 100 Percent, Welding Mode CC/CV
